Description

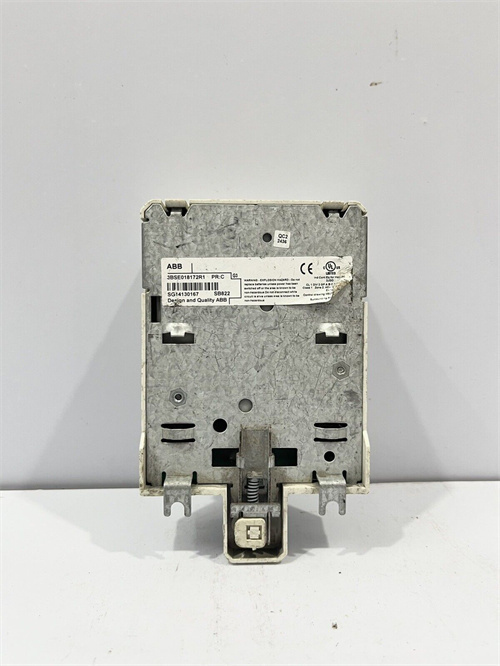

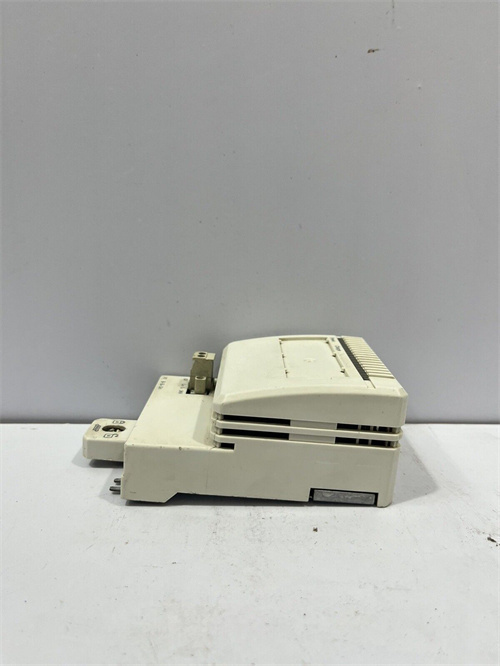

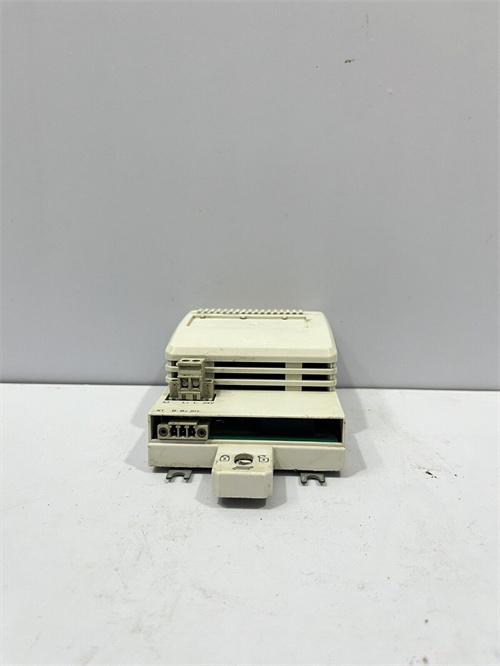

Abb sb822 is an I/ o module for the abb s800xa control system.
Product parameters:
Manufacturer: uab.
Model: sb822.
Type: module I/ o.
Channels: 16 digital input channels.
Voltage: 24v dc.
Filtration: 1ms.
Insulation: 2500vrms.
Dimensions: 88.9mm x 68.6mm x 22.2mm.
Weight: 0.2kg.
Specifications are as follows:
Electric interface: m20x1.5.
Protection level: ip65.
Explosion protection level: d explosive bt4.
Casing: aluminium casing can be used in wet, corrosive and other harsh conditions.
Ambient temperature range: -30 c to 70 c.
Process temperature range: -40 c to 220 c.
Process pressure range: -0.1 mpa to 4.0 mpa.
Measuring range: 0 to 1000pf.
Accuracy: 0.5%fs.
Output range: 4 ~ 20ma (three-wire system), hart protocol (two limitations).
Application:
The abb sb822 module I/ o is commonly used in automated control systems that require 16 digital inputs. It is designed for use in s800xa control systems and can be integrated into various industrial solutions that require high quality input/output signals.
