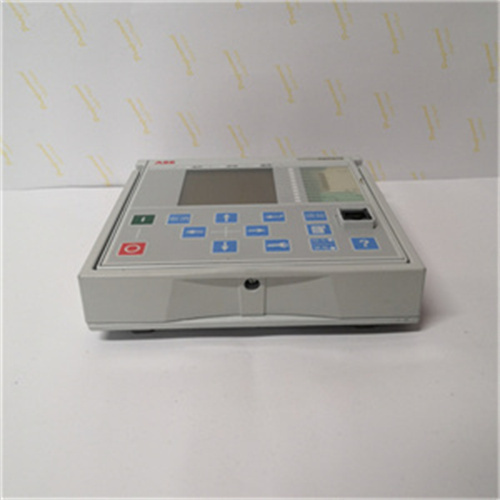

ABB REF615E-G

Description

Parameters and Specifications:

• Protection Functions: REF615E-G offers extensive protection and control functions, including both directional and non-directional overcurrent and earth fault protection, voltage, frequency, and power-based protection and measurement¹.
• Communication Interface: Supports IEC 61850 Edition 1 and 2, including HSR and PRP, GOOSE messaging, and IEC 61850-9-2 LE, for reduced wiring and supervised communication¹.

Dimensions and Weight:

• Exact Dimensions and Weight: Not specifically mentioned in the search results.

Series:

• REF615E-G belongs to ABB’s range of protection and control relays².

Features:

• Modular Design: With a draw-out plug-in design, enabling fast installation and testing¹.
• Display: Large graphical display for customizable SLD, accessible locally or via a web browser-based HMI¹.
• Life-Cycle Services: REF615E-G offers a wide range of life-cycle services¹.
• Customization: Comes with a standard configuration but also has customization options¹.
• Ease of Use: Quick and easy to set up¹.

Functions:

• Protection: REF615E-G is used to protect various equipment in power systems, including transformers, generators, cables, etc. It can detect and respond to fault conditions in the power system to prevent equipment damage².
• Control: REF615E-G can be integrated into the automation control of power systems, enabling automatic operation of equipment and system adjustments².
• Communication: REF615E-G supports communication interfaces for information exchange and coordinated operation with other devices and systems².
• Remote Monitoring and Control: Allows operators to remotely monitor the status of the power system and perform necessary operations².
• Event Recording and Alarm: REF615E-G has the ability to record events and faults in the system for subsequent analysis and troubleshooting².
