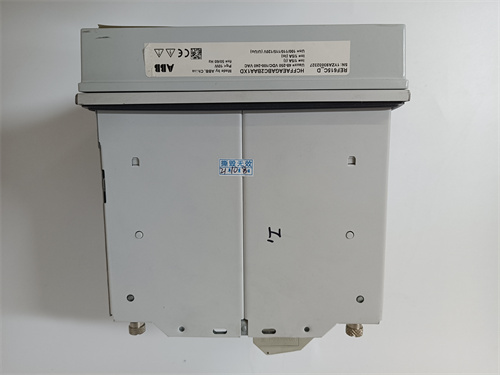

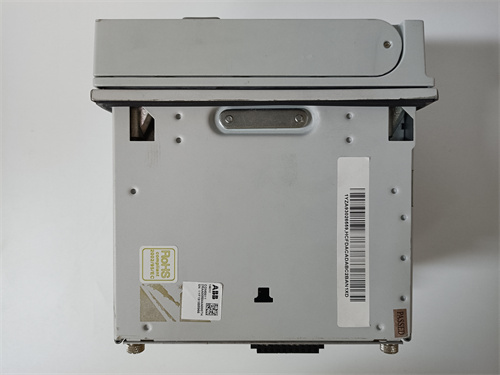

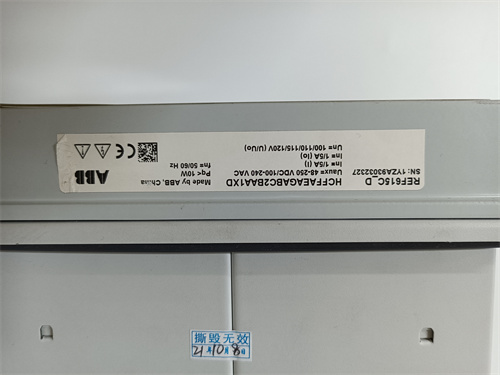

ABB REF615C-D

Description

Parameters and Specifications:

• Model: REF615C-D
• Brand: ABB
• Type: Control Relay
• Voltage Range: 80-220V (Nominal Voltage)¹
• Current Range: 1-5A (Nominal Current)⁴
• Functionality: Monitoring and control of current, voltage, and other electrical parameters²

Dimensions and Weight:

• Exact dimensions and weight: Not readily available in the general information. These details are typically specified in the product catalog or datasheet.

Series:

• REF615 series – ABB’s line of control relays designed for various industrial and power system applications.

Features:

• High Reliability: High-quality circuit design and manufacturing process ensure high reliability and stability³.
• Wide Operating Temperature Range: Can operate normally under different temperature conditions⁶.
• Multiple I/O Interfaces: Supports digital, analog, and other types of input/output interfaces to meet different control needs⁶.
• Programmable: Allows flexible control through programming³.
• Easy Operation and Maintenance: Simple and user-friendly operation interface with low maintenance costs³.
• Strong Compatibility: Compatible with various control systems and software for easy integration and expansion³.
• Safety Functions: May include safety features to mitigate risks in case of problems³.
• Communication Capability: Supports communication protocols such as IEC 61850 and Modbus for remote monitoring and control⁴.
• Automation Functions: Enables advanced control operations like auto-reclosing, current differential protection, and synchronization⁴.
• Event Recording: Capable of recording and storing event and fault data for subsequent analysis and troubleshooting⁴.
• Flexible Configuration: Programmable logic and control functions allow for customization based on specific application requirements⁷.

Applications:

• REF615C-D is typically used in medium and high-voltage power systems, including power substations, power distribution, power quality monitoring, motor protection, and equipment protection². It can also be found in industrial automation systems for controlling and monitoring motors, pumps, valves, and other devices³.
