Description

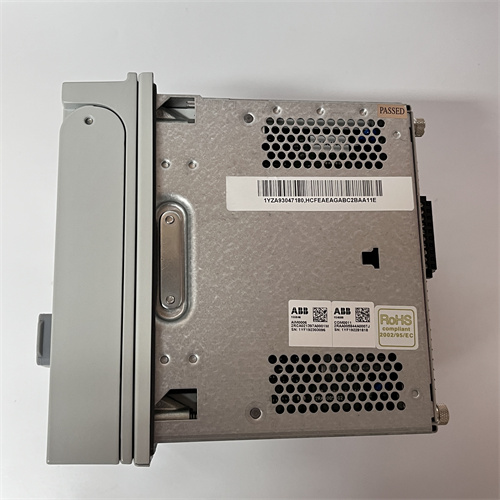

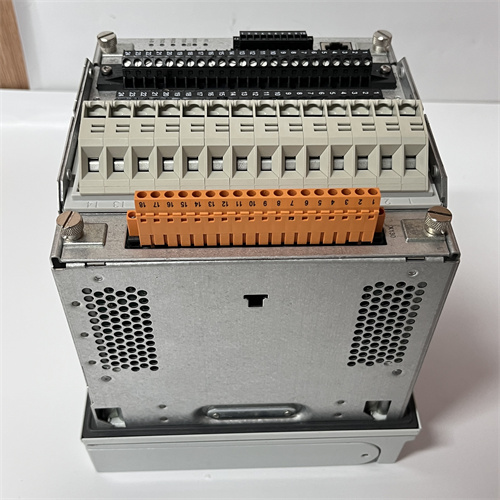

ABB REF615 is a highly functional and reliable relay protection device commonly used in power systems. It offers a range of features and specifications tailored to meet the needs of various industrial and commercial applications. Below is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters:
Protection Functions: Includes overcurrent, overload, short-circuit, ground fault, overvoltage, undervoltage, overfrequency, and underfrequency protection.
Communication Standards: Supports IEC 61850 communication standard, Parallel Redundancy Protocol (PRP), and High Availability Seamless Redundancy (HSR).
Specifications:
Processor: Equipped with a board-mounted processor, such as Pentium III-M or Celeron.
Memory: Features onboard memory and supports expandable memory.
Interface: Offers various interfaces, including USB, serial, parallel, and network ports.
Dimensions and Weight:
Exact dimensions and weight may vary depending on the specific model and configuration. However, it is typically designed for compact installation in electrical cabinets or panels.
Series:
ABB REF615 belongs to the Relion® product family’s 615 series of protection and control devices.
Features:
Integrated Protection and Control: Combines protection, control, monitoring, and management functions into a single device.
Pre-Configured Standard Configurations: Allows for faster and easier combination to meet different application needs.
Pluggable Design: Facilitates easy installation and testing.
Large LCD Display: Provides access to information and settings through a local or easily connectable and navigable HMI.
Communication Protocols: Supports IEC 61850, Modbus, DNP3, and IEC 60870-5-103 for seamless integration with other smart devices and remote monitoring.
Fault Recording and Event Logging: Records and stores critical event information for subsequent fault analysis and handling.
High Reliability and Stability: Offers precise and reliable electrical measurement and protection functions, suitable for operation in harsh environments.
Functions and Applications:
Power System Protection: Protects various equipment in power systems, including transformers, cables, and generators, by detecting and responding to fault conditions.
Automation Control: Can be integrated into the automation control of power systems, enabling automatic operations and system adjustments.
Remote Monitoring and Control: Supports remote monitoring and control capabilities, allowing operators to remotely supervise the status of power systems and perform necessary operations.
