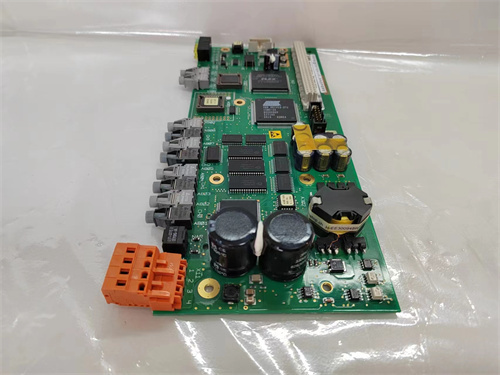

ABB PPC905AE101

Description

Parameters and Specifications (参数和规格):

• Electrical Parameters:
  • Bus Consumption Current: 80mA
  • Total Power Consumption: 3W
  • Input Characteristics:
    • Digital Input Points: 10
    • Rated Voltage: 24V DC
    • Maximum Allowable Voltage: 30V DC (surge voltage: 35V DC, 0.5s)
    • Logic “0” Voltage Range: 5V DC, 1mA
    • Logic “1” Voltage Range: 15V DC, 1mA
  • Output Characteristics:
    • Digital Output Points: 6
    • Output Type: Relay
    • Output Voltage: 24V DC or 250V AC
    • Rated Voltage Range: 5-30V DC / 20-250V AC
    • Rated Current: 2.0A

Features (特征):

• High Stability: Uses high-quality electronic components and materials for reliable operation in various industrial environments⁴.
• Multiple Protection Functions: Includes overcurrent, overvoltage, undervoltage protection, and automatic recovery function⁴.
• Ease of Configuration and Maintenance: Supports multiple configuration and programming methods for user convenience⁴.
• Wide Applicability: Suitable for various industrial automation applications, such as automated production lines, intelligent manufacturing, and robot control systems⁴.
• Compact Design: Facilitates installation and integration into existing systems²⁵.
• High Power Output: Enables effective control of connected motors⁵.
• Advanced Protection: Provides overcurrent, short-circuit, and over-temperature protection⁵.
• Digital Control Interface: Allows convenient configuration and monitoring of drive system parameters

Role (作用):

• ABB PPC905AE101 is a power processor module designed for industrial automation applications⁴.
• It provides stable power supply for industrial control systems and ensures reliable system operation⁴.
• It can be used for various applications requiring speed control, such as pumps, fans, compressors, or conveyors⁵.
• It controls and protects connected motors in drive systems
