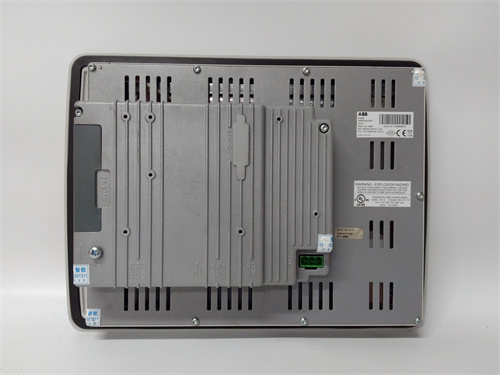

ABB PP845

Description

Parameters and Specifications:

• Type: Touchscreen Operator Panel
• Model: PP845
• Display Size: 8 inch
• Display Resolution: 800 x 600 pixels
• Display Colors: 16.7 million colors
• Touchscreen Type: Resistive
• Interfaces: Ethernet, RS-232/RS-485
• Protocols: Modbus TCP, Modbus RTU, PROFIBUS DP
• Power Supply Voltage: 24 VDC
• Power Consumption: < 20 W
• Operating Temperature: 0-55°C
• Storage Temperature: -20-60°C
• Humidity: 5-95% non-condensing
• Enclosure Protection Rating: IP65¹

Dimensions and Weight:

• Panel Size: 218 mm x 165 mm x 45 mm
• Panel Weight: 0.8 kg (approx.)¹

Series:

• PP845 belongs to the Panel 800 series of operator panels from ABB¹.

Features:

• Clear Color Display: An 8-inch color display with a resolution of 800 x 600 pixels, which allows for clear visualization of process information¹.
• Intuitive Interface: A user-friendly interface that is easy to operate and navigate¹.
• Rich Functionality: Supports various functions including trend curves, alarm management, data logging, etc.¹.
• Digital I/O: Provides programmable digital input and digital output capabilities for connecting and controlling external devices².
• Communication: Equipped with interfaces for communication with ABB systems, allowing data exchange and communication with other modules and controllers².
• Configurable and Programmable: Can be configured and programmed using ABB’s engineering tools to adapt to specific application needs².

Applications:

• The PP845 touchscreen operator panel is used for monitoring and controlling various industrial automation processes¹.
