Description

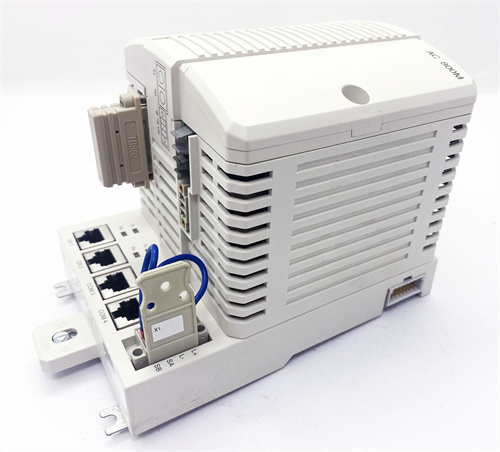

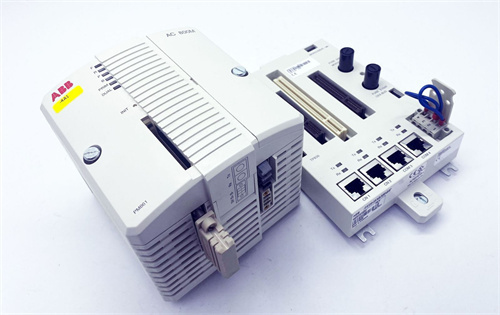

ABB PM861K01 is a highly capable processor module designed for industrial automation and control applications. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and applications in English:
Parameters and Specifications:
Input Characteristics:
Digital Input Points: 10
Rated Voltage: 24V DC
Allowable Voltage Range: 30V DC (for 0.5s)
Signal Input Type: PNP/NPN (photoelectrically isolated)
Output Characteristics:
Digital Output Points: 6
Output Type: Relay
Rated Voltage: 5-30V DC / 20-250V AC
Rated Current: 2.0A
Relay Contact Mechanical Life: 10,000,000 cycles
Power Consumption:
Bus Consumption Current: 80mA
Total Power Consumption: 3W (max. 10.3W)
Dimensions and Weight:
Dimensions: Not specifically mentioned, but typically modules like this have a compact design suitable for rack mounting.
Weight: Not specifically mentioned, but it’s expected to be lightweight for easy handling.
Series:
ABB PM861K01 belongs to the PM8xx series of processor modules, which are a part of ABB’s industrial automation solutions.
Features:

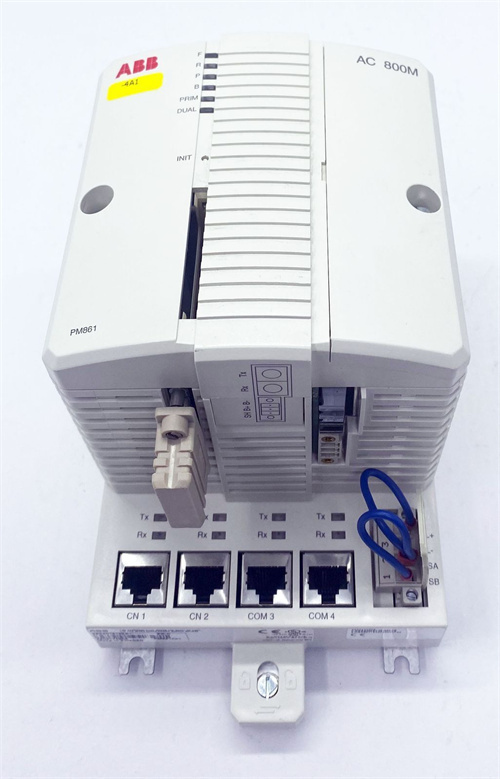

Communication Connectivity: The module includes two RJ45 Ethernet ports (CN1, CN2) for connecting to control networks, as well as two RJ45 serial ports (COM3, COM4).
Redundancy Support: Supports CPU redundancy for high availability, including redundancy in the CEX bus, communication interfaces, and S800 I/O.
Performance: Offers a high-speed processor with a clock frequency of 48 MHz, resulting in 1000 Boolean operations in 0.23 milliseconds.
Memory: Has 16 MB of RAM for applications and 2 MB of flash memory for storing the firmware.
Internal Battery: Equipped with a built-in lithium battery for redundancy.
Role/Application:
The ABB PM861K01 processor module is designed to be a central component in industrial automation systems. It provides the necessary processing power, communication capabilities, and I/O functionality to monitor and control industrial processes, equipment, and systems. By integrating with other devices and systems, it enables seamless automation, enhancing operational efficiency, productivity, and safety in various industrial settings.
