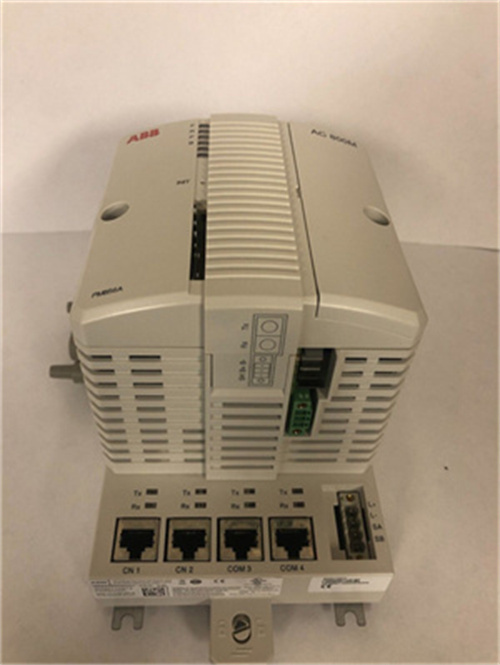

ABB PM856AK01

Description

Parameters and Specifications:

• Manufacturer: ABB
• Model: PM856AK01
• Processor Type: MPC860¹
• Clock Speed: 24 MHz¹
• Memory:
  • RAM for Applications: 10.337 MB¹
  • PROM for Firmware Storage: 2 MB¹
• Performance:
  • 1000 Boolean Operations: 0.46 ms¹
  • Cycle Time per Application: Down to 1 ms¹
• Power:
  • Voltage: 24 V DC (19.2-30 V DC)¹
  • Power Consumption @ +24 V (Typical/Max): 180 / 300 mA¹
  • Maximum Power: 7.2 W¹
• Backup Battery: Lithium Battery, 3.6 V¹
• Communications:
  • CEX Bus Modules: 12 single CEX bus modules¹
  • OPC Server Transmission Speed: 36-86 events/s, 113-143 data messages/s¹

Dimensions and Weight:

• Size and Weight: Not specifically mentioned in the provided information.

Series:

• ABB’s PM856 series of programmable logic controllers (PLC)²

Features:

• High Performance: With a 24 MHz clock speed and MPC860 processor, it provides excellent performance for industrial automation applications¹.
• Redundant Power Supply Status Input: Supports redundant power supply configurations for higher system availability¹.
• Communication Capabilities: Supports multiple communication protocols and interfaces for connectivity with other devices and systems¹.
• Expandable: Allows for the addition of modules and expansion cards for increased functionality².
• Role and Application:
  • The ABB PM856AK01 is a programmable logic controller (PLC) that is designed for use in industrial automation applications².
  • It serves as the “decision-making” unit, coordinating and controlling the operations of various devices and systems within an industrial environment³.
  • By using programmable logic, the PM856AK01 can be configured to perform a wide range of control tasks, including motor control, process control, data acquisition, and more³.
