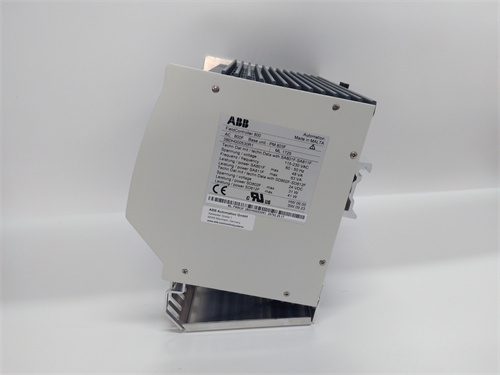

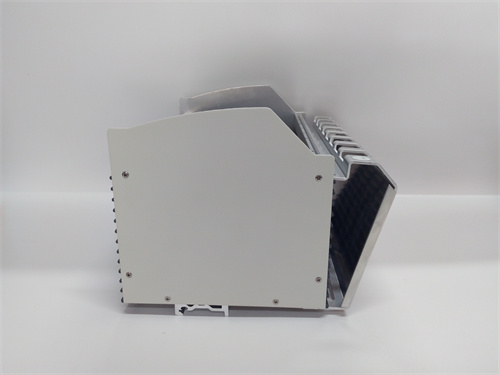

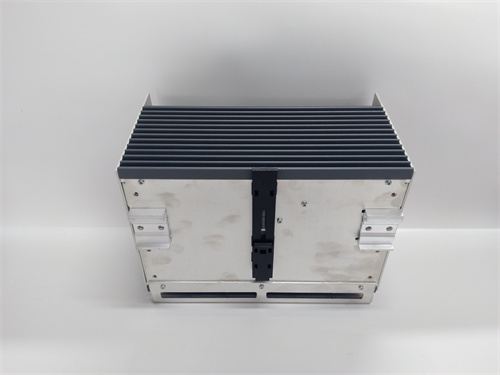

ABB PM803F

Description

Parameters:

• Controller Type: Programmable Logic Controller (PLC)¹²³
• CPU: Intel® 32-bit RISC Super Scalar processor²⁴
• Clock Speed: Up to 150 MIPS⁴⁵
• Memory: 16 MB SDRAM with battery backup⁴⁵
• I/O Scan Cycle: Configurable, depending on fieldbus module functionality¹²⁴
• Instruction Execution Time:
  • Binary and 16-bit arithmetic: <1.0 ms
  • Fixed-point arithmetic: <2.0 ms
  • 32-bit arithmetic: <1.5 ms⁴⁵

Specifications:

• Size (Dimensions): 239 mm x 202 mm x 164 mm⁴⁵
• Weight:
  • Basic unit: Max. 1.6 kg
  • Fully assembled: Max. 5 kg⁴⁵

Series:

• ABB PM803F belongs to the AC 800F Freelance control system series⁴⁵.

Features:

• High Performance: With the Intel® 32-bit RISC Super Scalar processor, it can meet various industrial automation application needs²⁴.
• Reliability: ABB is a well-known brand in the industrial automation field, and its products are usually highly reliable and durable for harsh industrial environments¹³⁴.
• Communication Interfaces: Supports Ethernet, serial communication, Profibus, Profinet, etc., for communication with other PLCs, sensors, actuators, and upper-level monitoring systems¹.
• Programmability: Allows users to create logic control programs and configure inputs and outputs using ABB’s engineering tools like Control Builder M¹.
• Modular Design: Supports modular expansion to meet different application needs¹³.
• Energy Efficiency: Uses suitable flux control methods for higher energy-saving operation³.
• Other Functions: Provides digital input/output, analog input/output, and supports VFD/line frequency switching and multi-pump cycling³.

Applications:

• ABB PM803F is commonly used in various industrial automation and control applications, including manufacturing, process control, power distribution, building automation, and more¹³.
