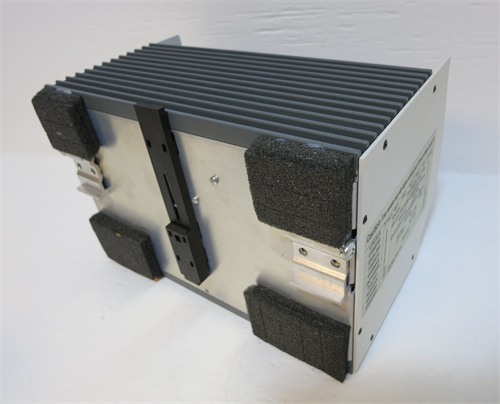

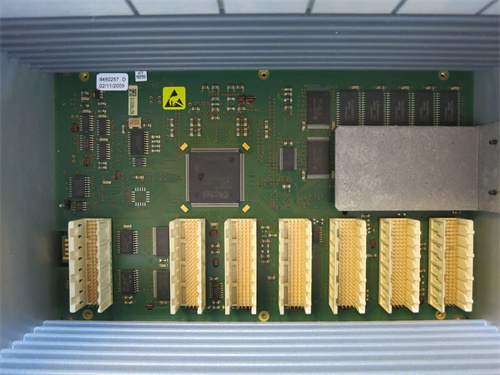

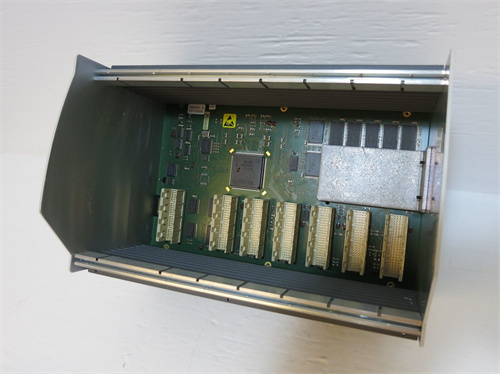

ABB PM802F

Description

Parameters

• Processing Speed: 0.5us (for program execution)
• User Program Capacity: 8000 steps (confidential download up to 24K steps)
• I/O Points: Input 18 points / Output 14 points
• Internal Coil Points (M): 8000 points
• Flowcharts (S): 1024 points
• Timers (T): Up to 620 points with various time settings
• Counters (C): Up to 635 points with 16-bit and 32-bit settings
• Data Registers (D): 5000 words
• FlashROM Registers (FD): 64 words
• Extended Internal Registers (ED): 36864 words

Specifications

• Control Principle: Other
• Programming Method: Instruction, Ladder Diagram
• Program Execution Modes: Cyclic scanning mode and timed scanning mode
• Power Consumption: 4.6 watts max.
• Storage Temperature: (-40°F to +185°F) or (-40°C to +85°C)
• Operating Temperature: (-22°F to +150°F) or (-30°C to +65°C)
• Weight: 0.82 kg
• Humidity: 95%, noncondensing

Series

PM802F belongs to the ABB DCS (Distributed Control System) controller series

Features

• High Performance: Uses advanced processors and high-speed memory technology
• High Reliability: Designed with emphasis on reliability
• Large Memory Capacity: Can store large amounts of program code and data
• Multiple Communication Options: Supports Ethernet, Profibus, CAN, and other protocols
• Easy Programming and Debugging: Supports C, C++, Python, and other programming languages
• High Expandability: Has multiple expansion slots for adding input/output modules and function modules

Applications

• PM802F is a powerful programmable logic controller designed to meet the needs of modern industrial automation³⁵. It is ideal for various industrial applications requiring complex control and monitoring
