Description

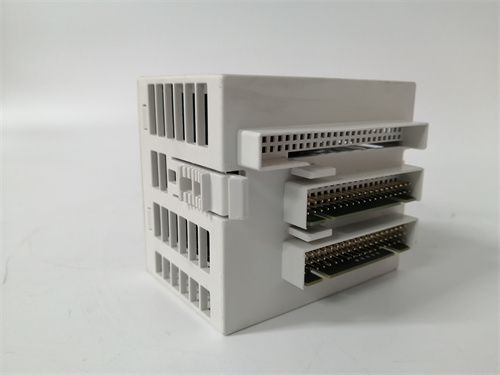

ABB PM783F 3BDH000364R0001 is a CPU module designed for industrial automation systems. Below is a summary of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Processor Type: The PM783F module is equipped with a powerful processor, optimized for fast cycle times.
Ethernet Connectivity: It features a built-in 100 Mbit/s Ethernet connection for communication between controllers, operator stations, and engineering tools.
Memory Capacity: The module offers 10 MB of memory, with 2 MB of battery backup, ensuring data retention during power outages.
Dimensions and Weight:
Dimensions: The PM783F module has a net depth/length of 54 mm, a net height of 76 mm, and a net width of 67.5 mm.
Weight: The net weight of the module is 0.15 kg.
Series:
The PM783F belongs to a series of CPU modules designed by ABB for industrial automation applications.
Features:
Fast Cycling: The module’s processor allows for quick cycling, enabling efficient and responsive automation control.
Communication Flexibility: With its Ethernet connection and serial line interfaces, the PM783F can seamlessly integrate into various communication networks.
Modularity and Expandability: The module supports multiple tasks and cycles, and allows for the connection of additional I/O modules.
Diagnostic Capabilities: The module provides extensive diagnostic information on its front panel display, enhancing troubleshooting and system maintenance.
Functions and Applications:
Central Processing Unit: The PM783F serves as the brain of industrial automation systems, performing logic calculations, data processing, and control tasks.
Communication Hub: It acts as a communication hub, facilitating data exchange between different components of the automation system.
I/O Control: The module can control and monitor input/output devices, such as sensors and actuators, enabling precise and reliable automation.
Please note that the specific parameters, specifications, dimensions, and features of the ABB PM783F 3BDH000364R0001 module may vary depending on the manufacturer’s updates or any customizations made. It is strongly recommended to consult the official product documentation or contact ABB directly for the most accurate and up-to-date information.
