Description

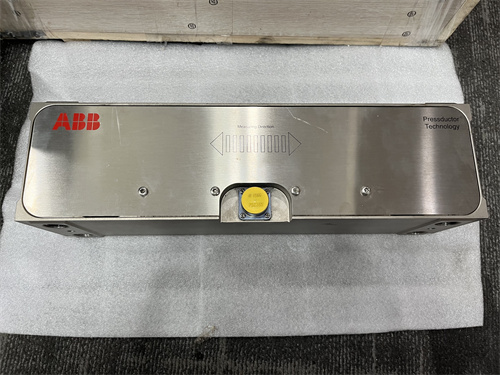

ABB PFTL201C 10KN 3BSE0079 is a load cell from ABB’s range of weighing and force measurement solutions. Load cells are devices used to measure weight or force by converting it into an electrical signal. Here is a detailed overview of the product’s parameters, specifications, and application areas:
Product Parameters:
Manufacturer: ABB
Model: PFTL201C
Capacity: 10KN (10,000 Newtons or 1,000 kg)
Material: High-quality materials for durability and accuracy
Output Signal: Depends on the configuration, but typically a proportional electrical signal related to the applied load
Accuracy Class: 3BSE0079 indicates the accuracy class of the load cell, which determines its measurement precision
Temperature Range: Specifies the operating temperature limits within which the load cell can maintain its accuracy
Excitation Voltage: The voltage required to power the load cell and generate the output signal
Protection Level: Measures the load cell’s resistance to environmental factors like dust and moisture
Compliance: Complies with relevant industry standards and regulations
Specifications:
Measurement Principle: Based on strain gauges that deform under load, converting the mechanical force into an electrical signal
Linearity: The ability of the load cell to maintain a constant output signal over its entire measurement range
Hysteresis: The difference in output signal when loading and unloading the same force
Creep and Recovery: Changes in output signal over time when a constant force is applied
Dynamic Response: The load cell’s ability to respond quickly to changes in applied force
Application Areas:
Industrial Weighing: Used in scales, platforms, and other weighing systems in manufacturing, logistics, and other industrial processes.
Force Measurement: Applied in testing machines, material testing, and other applications where precise force measurement is required.
Automation and Control Systems: Integrated into automation systems to monitor and control weight or force-related processes.
Research and Development: Used in laboratories and research facilities for precise force measurements in materials testing, product development, and more.
Please note that the specific parameters, specifications, and application areas may vary depending on the configuration and version of the ABB PFTL201C 10KN 3BSE0079 load cell. It is always recommended to refer to the manufacturer’s datasheet or contact ABB for the most accurate and up-to-date information.
