Description

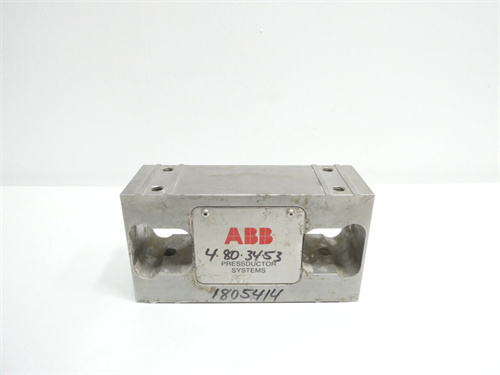

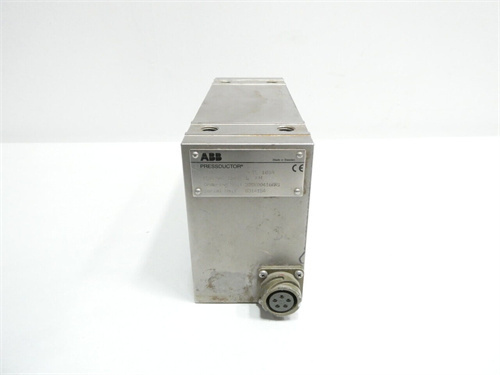

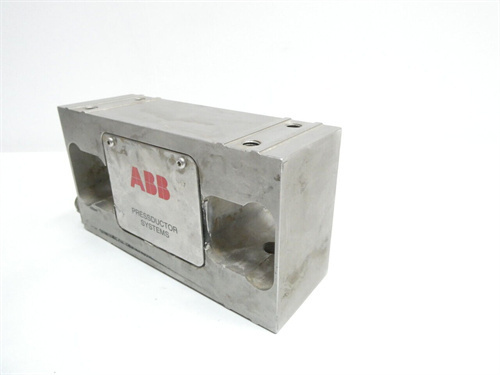

ABB PFTL 101B 2.0KN is a precision tension sensor designed for industrial applications that require accurate and reliable tension measurement. Here is a detailed overview of its parameters, specifications, dimensions, weight, series, features, and applications in English:
Parameters:
Rated Load: 2.0 KN (Kilonewtons).
Input Voltage: Typically 24 VDC.
Output Signal: 4 ~ 20 mA.
Accuracy: ±0.25% FSO (Full Scale Output).
Specifications:
Sensitivity: 2.0 mV/V ± 0.25%.
Zero Balance: ± 0.1 mV/V.
Nonlinearity: ± 0.05% FSO.
Hysteresis: ± 0.05% FSO.
Repeatability: ± 0.05% FSO.
Creep (30 minutes): ± 0.05% FSO.
Input Resistance: 400 Ω ± 20 Ω.
Output Resistance: 350 Ω ± 3 Ω.
Insulation Resistance: ≥ 5000 MΩ (50 VDC).
Excitation Voltage: 10 VDC.
Maximum Excitation Voltage: 15 VDC.
Cable Length: 3 meters.
Working Temperature: -40℃ to 85℃.
Protection Class: IP67.
Dimensions & Weight:
Exact dimensions and weight may vary depending on the specific configuration and accessories. It is recommended to consult the manufacturer’s official documentation for precise measurements.
Series:
ABB PFTL 101B 2.0KN belongs to the PFTL series of tension sensors from ABB.
Features:
High Accuracy: The sensor offers precise tension measurement with low nonlinearity, hysteresis, and repeatability errors.
Durability: Its rugged design and high-quality materials ensure reliable performance in industrial environments.
Excellent Protection: IP67 protection class provides resistance to dust and water ingress.
Easy Integration: The sensor can be easily integrated into existing systems and automation solutions.
Applications:
ABB PFTL 101B 2.0KN tension sensor is widely used in various industrial applications that require precise tension control and measurement. This includes steel mills, paper manufacturing, textile production, and other industries where tension control is critical for maintaining product quality and process efficiency.
