Description
Parameters and specifications:

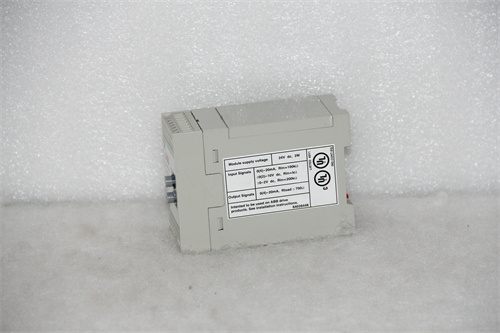

Make and Model: ABB, Model NAIO-03F.
System transmission accuracy: ±0.1%×F·S.
Temperature drift: ≤ 0.005%F ·S/℃ (35ppm/℃).
Input impedance: current ≤60Ω; Voltage ≥500KΩ.
The output allows external load impedance:
The output ranges from 0 to 300Ω for 4-20mA
0-10mA The output ranges from 0 to 600Ω
0(1) to 5V: ≥500 kω
0 to 10V: ≥1 Mω.
Power supply: AC 95~265V; DC DC 20 to 32V.
Input power: 0.9~1.8W.
Series:
The ABB NAI-03F itself is a specific model, not explicitly attributed to a particular family. ABB offers a variety of analog expansion modules and board modules, but the specific family classification of the NAIO-03F may require further review of official materials.
Features:
High reliability and accuracy: Ensure the accuracy of data transmission and processing.
Flexible configuration and installation: easy assembly and field application.
HART protocol verification: Support HART protocol to achieve compatibility and communication with other devices.
I/O module redundancy: Improves system stability and reliability.
** High Integration I/O Module (SIL3)** : High integration, superior performance.
Time stamp: Provides time stamp function to facilitate system management and data analysis.
Communication error output setting: When the communication error, you can set the corresponding output state.
Integrated Web Server technology: for remote diagnosis and maintenance.
Functions:
ABB NAIO-03F is mainly used for the input/output processing of analog signals in industrial automation systems, such as the acquisition, conversion and transmission of analog signals such as temperature, pressure and flow. It can convert analog signals into digital signals for further processing and analysis by the control system, or convert digital signals into analog signals for driving devices such as actuators.
