Description
Parameters and specifications:
Current input: DC current 0~10A (direct input, starting current :5mA), 0~9999A (external shunt or Hall element, range programmable setting).
Voltage input: DC voltage 0~1000V, input impedance ≥2kΩ/V.
Accuracy level: Current and voltage are 0.2.
Input voltage range: 85 VAC to 264 VAC, 90 VDC to 350 VDC.
Output voltage/current: Output voltage – Channel 1: 24.7VDC, output current – Channel 1: 20A.
Power consumption: ≤1mW.
Insulation resistance: ≥100MΩ.
Power frequency withstand voltage: 3kV/1min(RMS) between the power terminal group and the signal input and output terminal group.
Average trouble-free working time: ≥50000h.
Size and weight:
Length: 194 mm.
Width: 113.6mm.
Height: 138 mm.
Weight: about 3 kg.
Series:

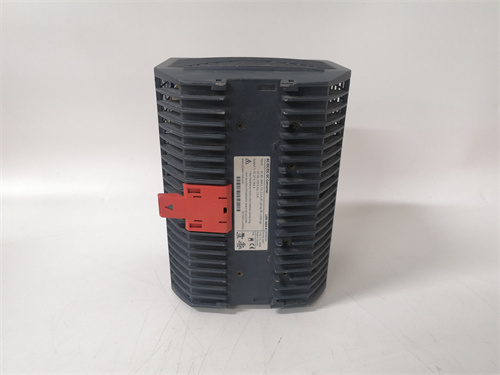

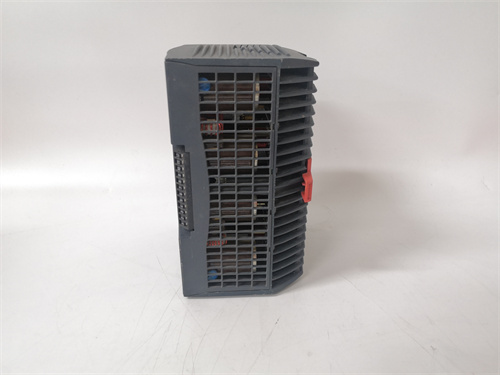

This product is ABB brand DIN rail type power module, belongs to the industrial automation control equipment series.
Features:
Modular design: Conforming to DIN standards, it can be directly mounted on DIN rail for easy installation and fixing.
Wide voltage input range: suitable for different power supply environments.
High efficiency and stability: The use of high-quality electronic components and advanced circuit design to ensure the stability and reliability of the power supply.
High efficiency and energy saving: with an energy saving mode, it can effectively reduce energy consumption and meet the requirements of green environmental protection.
Multiple protection functions: built-in overcurrent protection function, can effectively protect the power supply and connected equipment from overcurrent damage; It also has the functions of over-voltage protection and over-temperature protection.
Easy maintenance: with fault indication function, convenient for users to troubleshoot and maintain.
Functions:
Stable power supply: Provide stable and reliable power supply for various equipment and components in industrial automation and control systems to ensure the normal operation and efficient operation of the system.
Widely used: Widely used in PLC (programmable logic controller), DCS (distributed control system), motor drivers, sensors and other equipment.
