Description

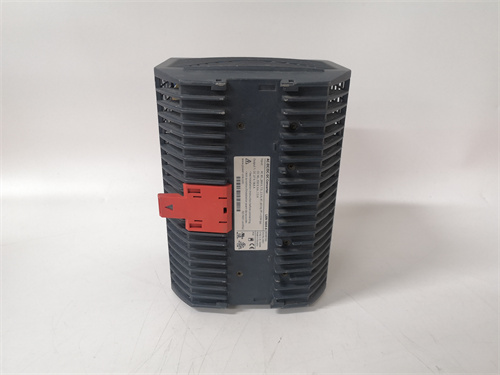

ABB LXN1604-6 3BHL000986P7000 is a DIN rail-mounted power supply module specifically designed for industrial automation and control systems. It offers a range of features and specifications that make it suitable for various applications. Here is a summary of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Input Voltage Range: Typically, it supports an input voltage range of 100-240V AC, which allows it to adapt to different power environments. However, there are also models with an input voltage range of 85 VAC to 264 VAC, 90 VDC to 350 VDC.
Output: It provides an output voltage of 24.7 VDC with a maximum output current of 20 A on Channel 1.
Accuracy: The module has a high degree of accuracy, with a current accuracy of 0.2% and a voltage accuracy of 0.2%.
Power: The maximum power output can be up to 500 W.
Dimensions and Weight:
Dimensions: The module measures approximately 194 mm in length, 113.6 mm in width, and 138 mm in height. However, there are also models with dimensions of 170mm x 105mm x 32mm.
Weight: It has a weight of approximately 1.6 kg. However, other models can weigh about 120g or 3 kg, depending on the specific configuration and accessories.
Series:
ABB LXN1604-6 3BHL000986P7000 belongs to the LXN series of power supply modules offered by ABB.
Features:
DIN Rail Mounting: It supports DIN rail installation, making it easy to install and fix on standard DIN rails.
Wide Voltage Input Range: The module’s ability to accept a wide range of input voltages enhances its versatility and compatibility with different power systems.
Overcurrent Protection: It incorporates built-in overcurrent protection to safeguard the power supply and connected equipment from damage.
Communication Interface: The module may also feature a communication interface for integration with monitoring systems or other control devices, enabling remote monitoring and control.
Power Factor Correction: It may incorporate power factor correction, which helps to improve the efficiency and reliability of the power system.
Application and Function:
The ABB LXN1604-6 3BHL000986P7000 power supply module is designed to provide reliable and efficient power to industrial automation and control systems. It finds applications in various industrial settings, including power building control systems, factory automation, industrial control, and other demanding environments. Its ability to handle a wide range of input voltages and provide stable output voltages makes it suitable for use in systems with varying power requirements.
