Description

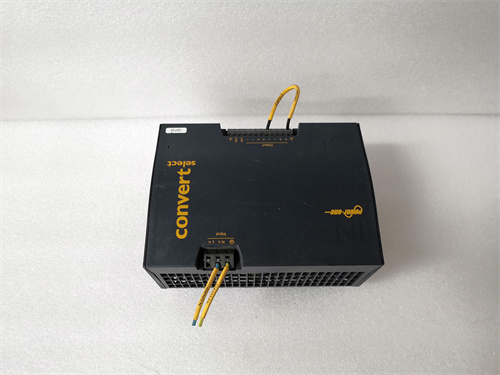

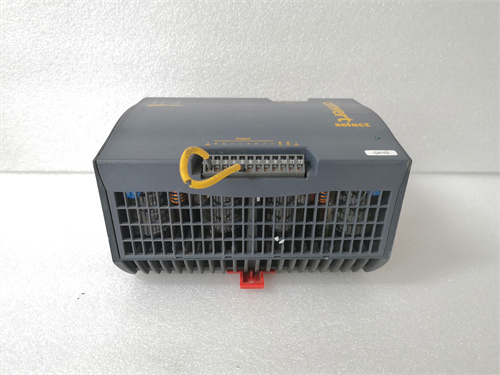

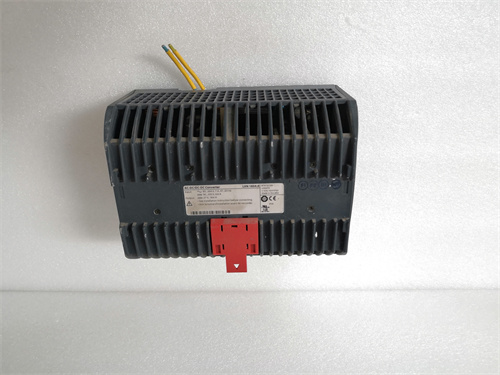

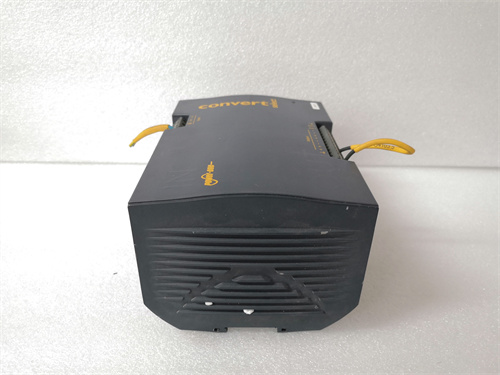

The ABB LXN1604-6 is a power module with the model number 3BHL000986P7000. The following is detailed information about its parameters, specifications, dimensions, weight, series, characteristics and functions:
Parameters and specifications:
Current input: DC current supports direct input from 0 to 10A and range programmable setting from 0 to 9999A via an external shunt or Hall element. Among them, the shunt supports output of 75mV; Hall components support outputs of 0~20mA, 4~20mA, 0~5V, 0~10V, etc.
Voltage input: DC voltage supports 0~1000V input, input impedance ≥2kΩ/V.
Accuracy level: The accuracy level of current and voltage is 0.2.
Insulation resistance: ≥100MΩ.
Power frequency voltage resistance: 3kV/1min(RMS) between the power terminal group and the signal input and output terminal group.
Average trouble-free working time: ≥50000h.
Size and weight:
Dimensions: Length 194mm, width 113.6mm, height 138mm. However, please note that another source gives a height of 18mm, the exact size may vary depending on the product batch or update, please refer to the official information.
Weight: 2.8 kg.
Series:
This product belongs to ABB’s LXN series, the specific model is LXN1604-6.
Features:
Stable power supply: Designed to provide a stable and reliable power supply to meet the power needs of the equipment in the automation system.
Modular design: Easy to install, maintain and replace, and can expand the system’s power capacity as needed.
Energy efficient: With efficient energy conversion technology, lower operating costs and reduce environmental impact.
Suitable for industrial environments: Durable housing and protection for reliable operation in harsh industrial environments.
Overload protection: It has functions such as overload protection, short circuit protection and overvoltage protection to ensure the stable operation of the system.
Functions:
Industrial automation and control system power supply: widely used in PLC (programmable logic controller), DCS (distributed control system), motor drivers, sensors and other equipment power supply.
HMI for multifunctional applications: In ABB robot controllers, the LXN1604-6 supports a variety of screen sizes, is suitable for a variety of applications, and has simple direct communication with ABB robot controllers.
