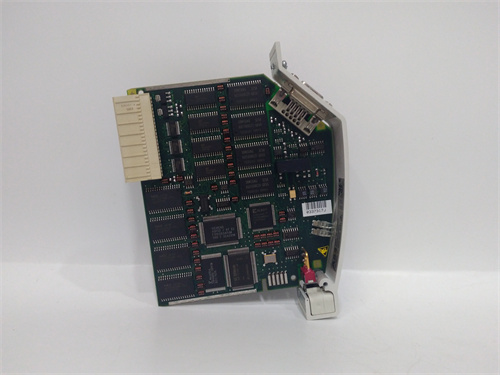

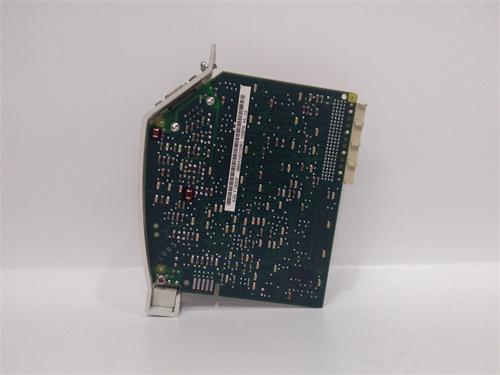

ABB FI830F

Description

Parameters and Specifications:

• Control Principle: Other (as specified in search result 1)
• Input Signal: Synchronous Serial SSI Signal (for single-turn, multi-turn encoders, linear sensors 10-26 bits)
• Operating Voltage: 220VAC
• Output Form:
  • One channel of 4-20mA analog output with 12-bit D/A precision.
  • One channel of RS485 full digital output with built-in communication protocol.
• Environmental Conditions:
  • Temperature: -10 to 60°C
  • Relative Humidity: <90%
• Accuracy: 0.1-0.9 (as specified in search result 1)

Dimensions and Weight:

• Dimensions: 2009050mm (as specified in search result 1)
• Weight: Not specified, but the shipping weight is 1.3 kg (as specified in search result 4)

Series:

• FI830F Series – Specifically, the FI830F 3BDH000032R1 model.

Features:

• Multi-functionality: Supports various input signals and output options.
• High Reliability: Suitable for industrial applications with reliable performance.
• Configurable: Allows for settings such as zero point, span, and direction.
• Communication Capability: RS485 communication with customizable protocols.
• Display: 6-digit digital display with configurable decimal point position.

Functions:

• Displacement Measurement: Used as a displacement controller for gates, encoders, and linear sensors¹.
• Automation and Control: Provides precise control and monitoring for industrial automation systems¹⁷.
• Signal Conditioning: Converts input signals (SSI) into standard analog or digital outputs¹.
