Description
ABB EI813 is an industrial Ethernet module that is widely used in automation systems. Here is a detailed breakdown of its parameters, specifications, dimensions, weight, series, features, and applications in English:
Parameters and Specifications:
Ethernet Standard: The EI813 module adheres to the IEEE802.3 Ethernet standard, providing reliable and high-speed data communication.
Communication Protocol: It supports various communication protocols such as Modbus and Profinet, enabling seamless integration with different devices and systems.
Data Rate: The module offers a transmission rate of 10 MBit/s,]^ ensuring. efficient
data ** transferData^[ Bus1**:][ It2 features a 32-bit data bus for enhanced data handling capabilities.
Dimensions and Weight:
Dimensions: The EI813 module has a net depth/length of 125 mm, a net height of 155 mm, and a net width of 28 mm.
Weight: It weighs approximately 0.15 kilograms.
Series:
ABB EI813 belongs to the ABB’s product line of industrial communication modules, specifically designed for use in automation systems.
Features:
High Reliability and Stability: The module is designed to offer high reliability and stability, resisting electromagnetic interference and network faults.
Redundant Battery Backup: Optional battery backup is available for the main memory, providing redundancy and enhancing system reliability.
Easy Configuration and Control: The module can be easily configured and controlled through software, facilitating remote maintenance and upgrades.

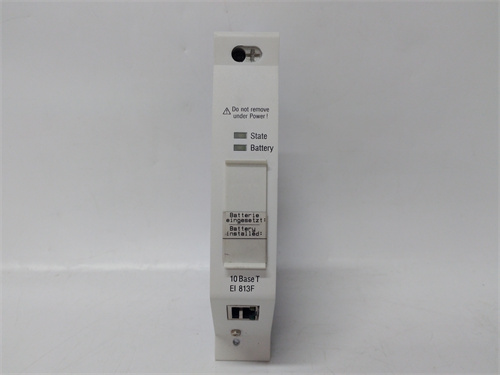

LED Indicators: The module features two integrated LED indicators that display the current communication status, including link status and ongoing communication.
Role/Application:
ABB EI813 Ethernet module plays a crucial role in industrial automation systems. It is typically used as a part of the control system for data communication and information transmission. It can be paired with controllers such as PLCs (Programmable Logic Controllers) or DCS (Distributed Control Systems) to enable remote monitoring, control, and fault diagnosis of industrial equipment and processes. Its ability to transmit data quickly and securely over Ethernet networks makes it suitable for a wide range of industrial applications where real-time data exchange is crucial.
