Description

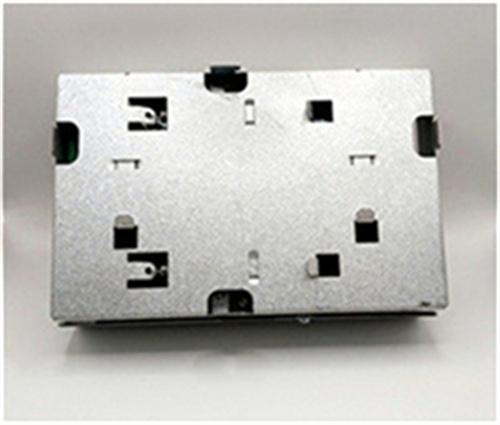

ABB DSQC378B is a communication module widely used in industrial automation and robotics systems. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Model Number: DSQC378B.
Functionality: Converts CC-Link protocol to Devicenet protocol for communication with robot controllers.
Communication Parameters:
Station Number: Determines the address on the CC-Link bus. Range is 1-64.
BaudRate: Determines the communication rate. Available options are 156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps, and 10 Mbps.
OccSta: Determines the number of occupied stations on the bus. Available options are 1-4.
BasicIO: Determines the type of communication data. Options are Bit I/O only or Bit I/O and word I/O.
Dimensions and Weight:
Dimensions: Specific dimensions for the module are not provided, but it is typically compact and designed for easy integration into industrial systems.
Weight: The weight of the module is relatively light, making it suitable for use in various industrial environments. However, specific weight information is not available.
Series:
The DSQC378B belongs to ABB’s range of communication and control modules designed for industrial automation applications.
Features:
Modular Design: Allows for easy integration and configuration within the overall system.
Protocol Conversion: Its ability to convert CC-Link to Devicenet simplifies communication between different components.
Robustness: The module is designed to operate reliably in industrial environments, resisting dust, vibrations, and temperature fluctuations.
Functions:
Communication Interface: DSQC378B serves as a communication interface between CC-Link devices and Devicenet-enabled controllers or robots.
Data Transmission: It facilitates the transmission of data between connected devices, enabling seamless communication and control.
