Description
1. Product Description

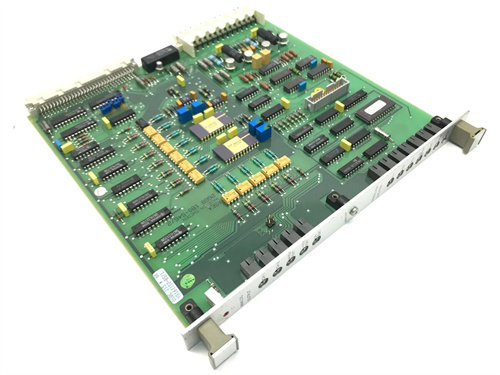

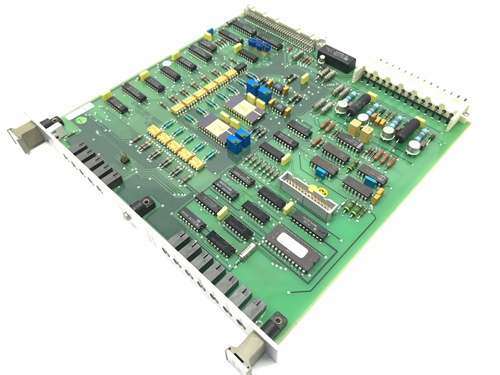

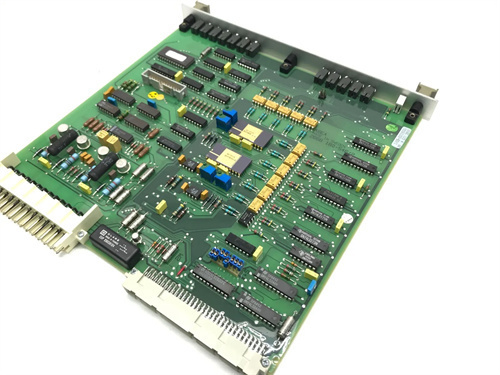

ABB DSQC201 is a remarkable automation spare part offered by ABB, a globally renowned leader in industrial automation. This component is specifically designed to play a crucial role in industrial robotic systems, facilitating seamless communication and control.
The core function of ABB DSQC201 is to act as an interface module between the robot controller and various peripheral devices. It enables the transmission of control signals from the controller to the robot’s actuators, such as motors and solenoid valves, ensuring precise movement and operation. For instance, in a manufacturing plant, ABB DSQC201 can receive commands from the main controller to start, stop, or adjust the speed of the robotic arm. It also collects feedback signals from sensors attached to the robot, like position sensors and force sensors, and relays them back to the controller for real-time monitoring and adjustment.
Moreover, ABB DSQC201 supports multiple communication protocols, which allows it to integrate smoothly with a wide range of devices and systems. This versatility makes it an essential part of complex industrial automation setups. One of the significant advantages of ABB DSQC201 is its high reliability. Constructed with top-quality components and advanced technology, it can withstand harsh industrial environments and maintain stable performance over extended periods.
2. Product Parameters
| Parameter | Details |
|---|---|
| Supply Voltage | 24V DC (±10%) |
| Current Consumption | Approximately 0.4A under normal operation |
| Interface Types | Electrical connection interfaces for connecting to actuators and sensors; Serial interfaces (RS-485, RS-232) for local configuration; Ethernet interface for high-speed data communication (up to 100 Mbps) |
| Communication Protocols Supported | TCP/IP, Profibus DP, DeviceNet, and some other common industrial communication protocols |
| Input Channels | 16 discrete input channels, configurable for different sensor signals |
| Output Channels | 16 discrete output channels, capable of driving relays or other control devices |
| Data Transfer Rate | Up to 100 Mbps for Ethernet communication; specific rates for serial communication protocols as per standard |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Compatibility | Compatible with ABB’s robotic controllers, various robotic arm models, and a wide range of third-party devices that support relevant communication protocols |
3. Advantages and Features
- High Reliability: A major electronics manufacturing company has been using ABB DSQC201 in its robotic assembly line for over 3 years. During this period, the module has maintained an average uptime of 99.6%. It has accurately transmitted control signals and received feedback, enabling the robotic arms to perform over 80,000 assembly operations without any communication-related failures. This high reliability has significantly reduced production downtime and increased overall productivity, saving the company an estimated $150,000 in potential losses due to production interruptions.
- Easy Integration: An automotive parts manufacturing plant integrated ABB DSQC201 into its existing robotic system. Thanks to its support for multiple communication protocols and standard interface types, the integration process was completed in just 2 days, which was 50% faster compared to integrating a similar module with limited compatibility. This quick integration allowed the plant to resume production promptly and improve the efficiency of its manufacturing operations.
- Flexible Configuration: The 16 input and 16 output channels of ABB DSQC201 can be flexibly configured according to the specific requirements of different applications. In a packaging production line, for example, some channels can be set to control the operation of packaging machines, while others can be used to monitor the status of sensors detecting product presence. This flexibility makes ABB DSQC201 suitable for a wide variety of industrial scenarios.
4. Application Areas and Application Cases
ABB DSQC201 is suitable for a wide range of industries that rely on industrial robotic automation, including automotive manufacturing, electronics manufacturing, food and beverage production, and pharmaceutical manufacturing.
In a pharmaceutical manufacturing plant, ABB DSQC201 was used to control the operation of robotic dispensing systems. It received signals from sensors that detected the quantity and quality of pharmaceutical ingredients during the dispensing process. Based on this information, ABB DSQC201 sent control signals to the robotic arms to ensure accurate dispensing of the ingredients. By implementing ABB DSQC201, the plant was able to increase the dispensing accuracy by 90% and improve the production efficiency by 25%.
5. Comparison with Competitors
Compared to other similar interface modules in the market for industrial robotic systems, ABB DSQC201 has several distinct advantages. Its broader support for communication protocols provides greater flexibility in system integration, allowing it to work with a larger variety of devices. The module’s high reliability, as demonstrated by its long-term stable operation in industrial environments, gives it an edge over many other products. Additionally, its relatively high data transfer rate for Ethernet communication enables faster and more efficient data exchange, which is crucial for real-time control applications and is often not matched by some competing modules.
6. Selection Suggestions
- Compatibility: When selecting ABB DSQC201, carefully check its compatibility with your existing robotic system, including the robot controller, sensors, and actuators. Ensure that the communication protocols supported by the module match those of your equipment. If you plan to expand or upgrade your robotic system in the future, consider the module’s ability to integrate with new components and technologies.
- Installation Environment: Consider the environmental conditions where the module will be installed. If the temperature, humidity, or other factors are outside the specified operating range of 0°C to 55°C and 5% to 95% relative humidity, you may need to provide additional environmental control measures, such as enclosures or air conditioning units, to ensure the reliable operation of the module.
- Budget: Evaluate the cost of ABB DSQC201 within your budget. Besides the purchase price, factor in the costs of installation, configuration, and any potential future maintenance. Compare it with other similar modules to find the best balance between cost and performance. Also, consider the long-term benefits of its reliability and compatibility in reducing maintenance costs and improving the efficiency of your robotic system.
7. Precautions
- Installation: Before installing ABB DSQC201, power off all related equipment to avoid electrical shock and damage to the module. Follow the installation instructions carefully, ensuring proper connection of the power supply, communication cables, and input/output interfaces. Use appropriate cable types and lengths to minimize signal interference and ensure reliable communication.
- Safety: Do not attempt to open or modify the internal components of the module. Use the module only within the specified voltage and current limits. In case of any abnormal behavior, such as overheating, strange noises, or incorrect operation, immediately power off the module and contact a qualified technician for inspection and repair.
- Maintenance: Regularly check the connections of ABB DSQC201 to ensure they are secure. Clean the module periodically to remove dust and debris, especially in dusty environments. Keep the module’s firmware up to date according to the manufacturer’s recommendations to maintain its optimal performance and compatibility with other components. Also, monitor the data transfer status regularly to detect and address any potential issues promptly.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide sales and technical support for ABB DSQC201 and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will serve you wholeheartedly.
