Description

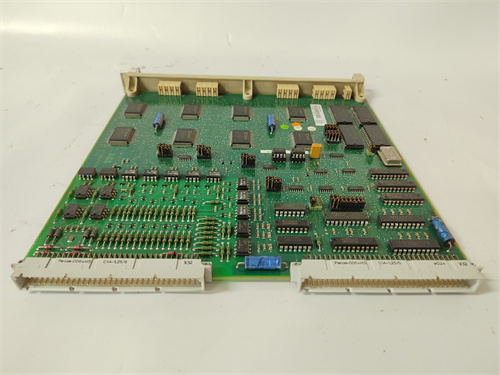

ABB DSDP170 is a digital signal processor module designed for use in a range of industrial automation applications. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Bandwidth: The DSDP170 has a bandwidth of 20MHz.
Real-time Sampling Rate: It offers a real-time sampling rate of 25MS/s.
Main Power Supply: The module accepts ac 220v 380-480v ±10% as its main power supply.
Auxiliary Voltage: It also supports an auxiliary voltage of ac 220v±15% 50/60hz.
Output Range: The output voltage range is 0-100%.
Dimensions and Weight:
Dimensions: The module’s dimensions are not specifically mentioned, but it is generally compact for easy installation in industrial racks.
Weight: The DSDP170 module has a weight of approximately 1.38 kg.
Series:
The DSDP170 belongs to ABB’s series of digital signal processors or input/output modules designed for industrial automation systems.
Features:
High-Precision Counting: The module incorporates high-precision counting technology, allowing accurate measurement and counting of high-speed pulse signals from various sensors such as rotary encoders and photoelectric encoders.
Multiple Input Interfaces: It supports multiple input interfaces, including push-pull, open-drain, and open-source, facilitating connections with different types of sensors.
Programmable Settings: Users can programmatically set various module parameters, such as counting range, counting direction, and pulse polarity, to meet specific application needs.
Functions and Applications:
Signal Processing: The DSDP170 processes digital signals, converting them into a format suitable for use by the control system.
Control and Monitoring: It serves as a critical component in industrial automation systems, enabling precise control and monitoring of various processes.
Integration with DCS/PLC: The module is compatible with multiple DCS (Distributed Control Systems) and PLC (Programmable Logic Controllers) systems, allowing seamless integration into existing automation infrastructures.
