1. Product Description

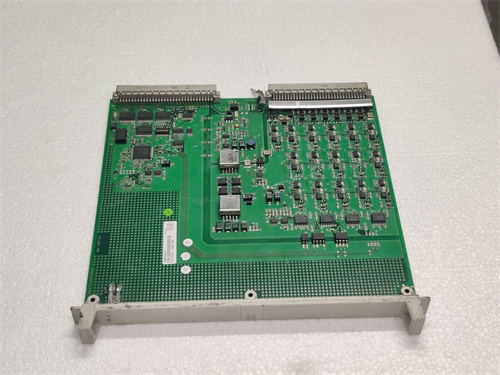

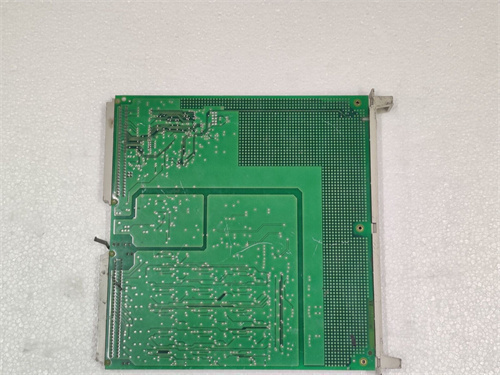

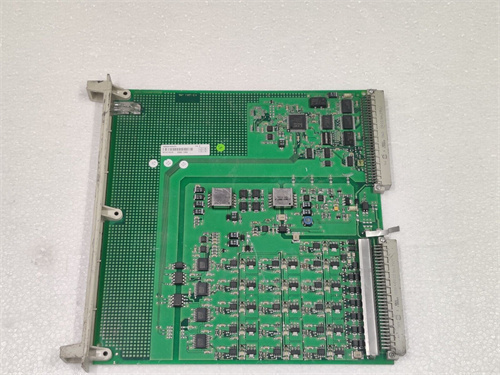

ABB DSAI130D is a remarkable PLC spare part from ABB, a globally – recognized brand renowned for its excellence in industrial automation.
The core function of ABB DSAI130D is to serve as an analog input module within a programmable logic controller (PLC) system. It is designed to convert analog signals from various sensors, such as temperature sensors, pressure sensors, and flow sensors, into digital data that can be processed by the PLC. In a manufacturing environment, this module can collect data related to production parameters, enabling precise control of the manufacturing process. For example, it can measure the temperature of a furnace in a steel – making plant or the pressure in a chemical reactor.
In the energy sector, in a power generation plant, ABB DSAI130D can monitor the analog signals from generators, such as voltage and current levels. This data is crucial for maintaining the stability and efficiency of power generation. One of the significant advantages of ABB DSAI130D is its high – precision signal conversion. It can accurately measure and convert analog signals, providing reliable data for the control system. Additionally, it offers excellent noise immunity, which is essential for stable operation in industrial environments with electromagnetic interference.
2. Product Parameters
| Parameter | Details |
|---|---|
| Rated Voltage | 24V DC (±10%) |
| Current Consumption | Approximately 0.6A |
| Number of Input Channels | [X] (e.g., 8 channels) |
| Input Signal Range | – 10V to +10V, 0 – 20mA, 4 – 20mA, etc. (configurable) |
| Resolution | [X] bits (e.g., 16 bits) |
| Sampling Rate | Up to [X] samples per second (e.g., 100 samples per second) |
| Interface Types | Connector – based interfaces for connection to the PLC backplane and external sensors |
| Compatibility | Compatible with ABB’s AC 800M, AC 800F series PLCs and other ABB control systems |
| Operating Temperature Range | – 20°C to +60°C |
| Relative Humidity Range | 5% – 95% (non – condensing) |
3. Advantages and Features
- High – Precision Signal Conversion: In a food processing plant, the installation of ABB DSAI130D improved the quality control of the production process. The 16 – bit resolution allowed for highly accurate measurement of the temperature and humidity in the food storage area. As a result, the spoilage rate of the food products decreased by 18% because the environmental conditions could be precisely controlled.
- Noise Immunity: A metal – processing factory, which has a high level of electromagnetic interference, adopted ABB DSAI130D. The module’s excellent noise – immunity feature ensured stable and accurate data collection from the sensors. The error rate in the analog signal measurement was reduced by 30% compared to the previous module, leading to more reliable control of the metal – processing equipment.
- Reliability: A water treatment plant has been using ABB DSAI130D for over 7 years. During this period, it has only experienced one minor fault, which was quickly resolved. Its mean time between failures (MTBF) is estimated to be over 140,000 hours, ensuring the continuous and stable operation of the water treatment control system.
4. Application Areas and Application Cases
ABB DSAI130D is applicable in various industries, including manufacturing (automotive, electronics, food), energy (power generation, oil and gas), water treatment, and transportation (railway, aviation).
In a railway power supply system, ABB DSAI130D was used to monitor the analog signals from the power transformers, such as the voltage and current. By accurately measuring these signals, the railway company could detect potential faults in the power supply system in advance. This early detection reduced the number of power – related disruptions by 25%, improving the reliability of the railway operation.
5. Comparison with Competitors
Compared to similar products in the market, ABB DSAI130D has several advantages. In terms of signal conversion precision, it offers a higher resolution, providing more accurate data for the control system. Its noise – immunity performance is also superior, which is crucial for reliable operation in harsh industrial environments. Moreover, its compatibility with ABB’s control systems is seamless, allowing for easier integration into existing automation setups. Some competing products may have lower resolution, less noise – immunity, or more complex integration processes.
6. Selection Recommendations
- Compatibility: When selecting ABB DSAI130D, ensure that it is compatible with your existing PLC system. Check the communication protocols, interface types, and electrical specifications of your PLC, sensors, and actuators. If you plan to expand the system in the future, make sure the module can support additional functions and higher data rates.
- Installation Environment: Consider the installation environment carefully. If the environment is harsh, such as having high levels of dust, moisture, or electromagnetic interference, ensure that the module’s specifications can withstand these conditions. You may need to take additional protective measures, such as using enclosures or installing shielding devices.
- Budget: Evaluate the cost of ABB DSAI130D in relation to your budget. Consider not only the initial purchase price but also long – term costs, including maintenance, spare part replacements, and potential upgrades. Compare it with other similar products to find the best balance between performance and cost.
7. Precautions
- Installation: Before installing ABB DSAI130D, turn off all power sources to avoid electrical shock. Follow the installation instructions precisely, including proper connection of power cables, sensor cables, and the connection to the PLC backplane. Ensure that all connections are secure and well – insulated.
- Safety: Do not touch the internal components of ABB DSAI130D while it is powered on. Use appropriate safety equipment, such as insulated gloves and safety glasses, when handling the module. In case of abnormal phenomena such as overheating, strange noises, or system malfunctions, immediately power off the device and contact a professional technician.
- Maintenance: Regularly inspect ABB DSAI130D for physical damage, loose connections, or signs of wear. Keep the module clean and free from dust and debris. Check the power supply and input signals regularly to ensure stable operation. Replace any faulty components according to the manufacturer’s recommendations to maintain optimal performance.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide sales and technical support for ABB DSAI130D and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will serve you wholeheartedly.
