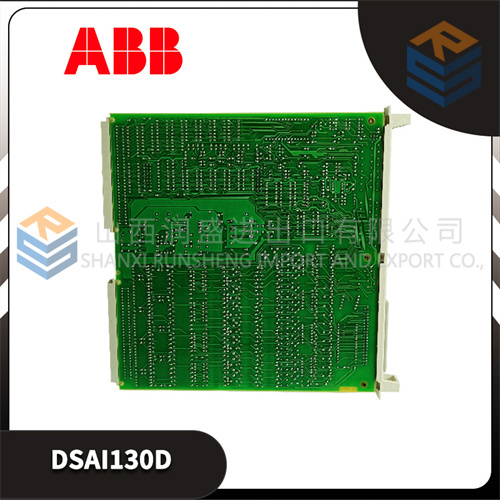

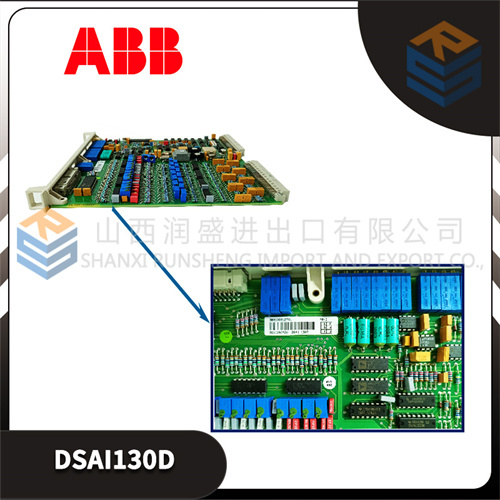

ABB DSAI130D

Description

Parameters and Specifications:

• Type: Analog Input Module
• Model: DSAI130D
• Input Channels: 16
• Resolution: 12 bits
• Input Range: ±76.5 mV
• Input Impedance: 2 MΩ
• Sampling Rates: 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz, 32 kHz
• Filter Times: 0.2s, 0.5s, 1s, 2s, 5s, 10s, 20s
• Power Supply Voltage: 24 VDC
• Power Consumption: 3 W
• Operating Temperature: -20-60°C
• Storage Temperature: -40-85°C
• Humidity: 5-95% non-condensing
• Enclosure Protection Class: IP65

Dimensions and Weight:

• Module Size: 87 mm x 46 mm x 23 mm
• Module Weight: 0.14 kg

Series:

• DSAI130D belongs to ABB’s S series I/O module family, which is characterized by compact design, high performance, and ease of use¹.

Features:

• High Performance: With 12-bit resolution, it supports various sampling rates and filter times, resulting in high measurement accuracy¹.
• Compact Design: Its small size saves space¹.
• Ease of Use: Simple installation and convenient maintenance¹.

Applications:

• The DSAI130D module is used to convert various analog signals into digital signals for processing by PLCs or other controllers¹. It can be applied in various industries, including industrial automation, manufacturing, power generation, and process control².
