Description

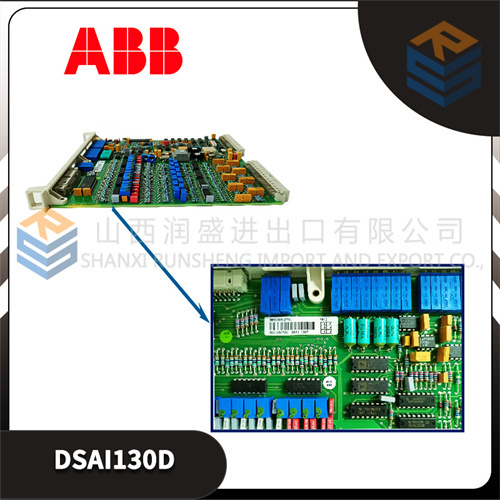

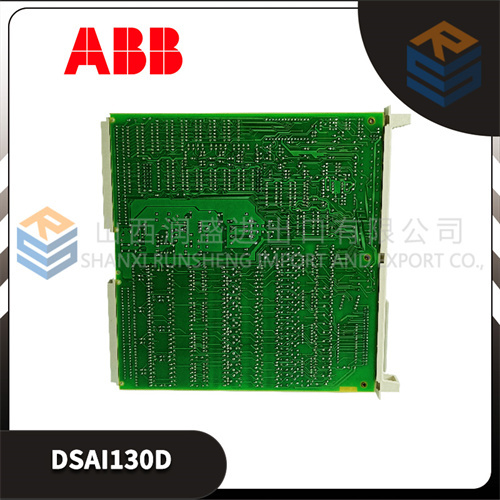

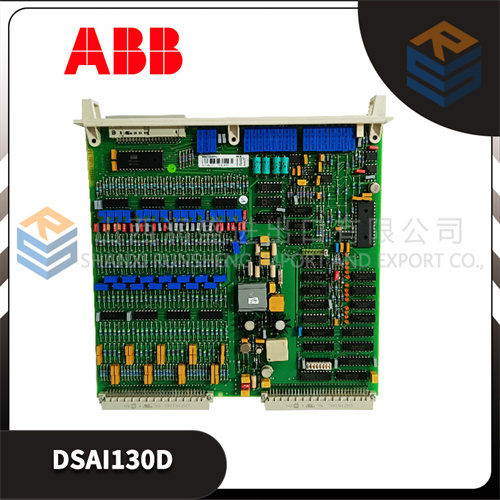

ABB DSAI130D is a high-performance digital input module specifically designed for industrial automation and control systems. This module provides excellent performance and reliability in monitoring and processing digital signals from various devices. Here is a detailed overview of its parameters, specifications, dimensions, weight, series, features, and applications in English:
Parameters and Specifications:
Input Signal Types: Supports a range of digital input signal types, including digital pulses, digital levels, and digital frequencies.
Input Channels: The module is expandable to up to 32 digital input channels, providing flexibility in connecting multiple digital signal sources.
Sampling Rate: Has a maximum sampling rate of up to 50kHz, enabling high-speed signal acquisition and processing.
Filter Types: Offers various filter types such as low-pass, band-pass, high-pass, and programmable filters, allowing for signal conditioning and noise reduction.
Communication Interfaces: Supports RS485 and CANopen communication interfaces for seamless integration with ABB and other control systems.
Dimensions and Weight:
Dimensions: The module’s approximate dimensions are 71mm x 100mm x 22.5mm (length x width x height). However, some sources may list different dimensions, such as 274.5mm x 270mm x 27mm (length x width x depth). It’s always advisable to refer to the latest official documentation for accurate dimensions.
Weight: Typically, the module’s weight is around 2KG.
Series:
ABB DSAI130D belongs to the ABB family of industrial automation components, specifically designed for use in various control systems.
Features:
Multi-channel Design: Its expandable channel structure allows for the connection of multiple digital signal sources, enhancing system flexibility and scalability.
High Sampling Rate: The high sampling rate ensures accurate and timely acquisition of digital signals, crucial for fast-paced industrial applications.
Flexible Filtering: The various filter options provide the flexibility to process and condition signals according to specific application requirements.
Robust Communication: The supported communication interfaces ensure reliable and efficient data exchange between the module and other system components.
High Reliability: The module is designed with high-quality components and robust construction, ensuring reliable operation in harsh industrial environments.
Applications:
ABB DSAI130D is widely used in various industrial automation and control applications, including machinery, process control, energy management, and more. Its ability to receive and process digital signals effectively makes it an essential component in monitoring the status of switches, sensors, and other devices.
