1. Product Description

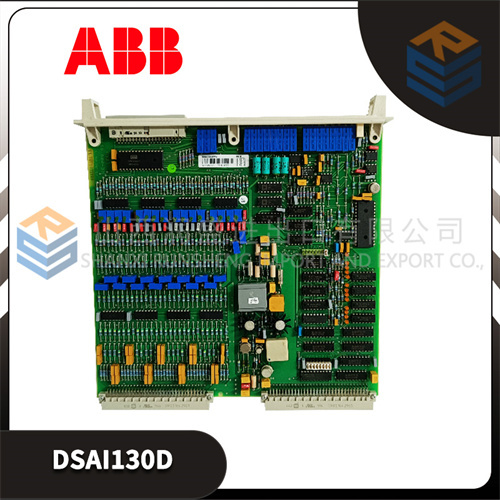

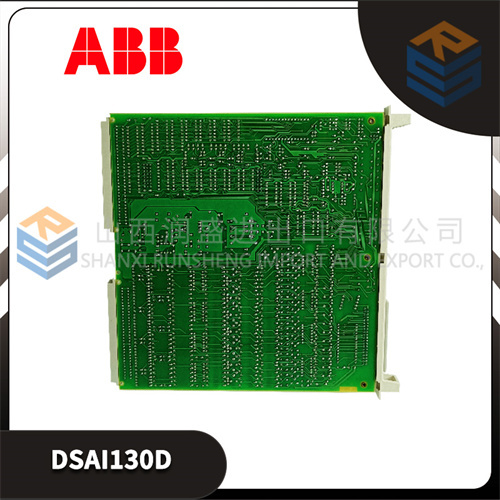

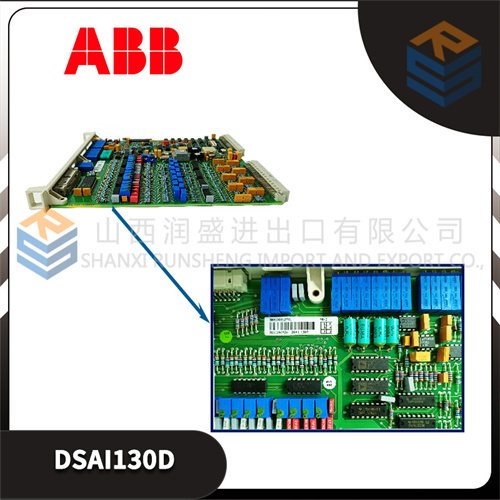

ABB DSAI130 is a highly efficient and reliable automation spare part developed by ABB, a renowned global company in the field of electrical and automation technologies.
The core function of ABB DSAI130 is to serve as an analog input module in industrial automation systems. It is designed to accurately receive and process analog signals from various sensors in the industrial environment. For example, in a manufacturing plant, ABB DSAI130 can be connected to temperature sensors, pressure sensors, and flow rate sensors. It then converts the analog signals received from these sensors into digital data that can be easily processed by the Programmable Logic Controller (PLC) or other control systems. This enables precise monitoring and control of the production process.
In an energy production facility, such as a power plant or an oil refinery, ABB DSAI130 plays a vital role in collecting data related to critical parameters. It can measure the temperature of the generator, the pressure of the oil pipeline, and the flow rate of the cooling water, among other things. One of the significant advantages of ABB DSAI130 is its high accuracy in analog signal conversion, which ensures reliable data collection. Additionally, its robust design and compatibility with a wide range of ABB automation products make it a popular choice for industrial applications.
2. Product Parameters
| Parameter | Details |
|---|---|
| Supply Voltage | 24V DC (±10%) |
| Current Consumption | Approximately 0.4A under normal operation |
| Interface Types | Serial interfaces (RS-485 for communication with other devices in some cases), and analog input terminals for connecting to sensors |
| Communication Protocols Supported | Modbus RTU (in some configurations), and can communicate with ABB’s internal communication systems for data transfer to the control unit |
| Input Channels | 8 analog input channels, configurable for different input ranges such as 4-20 mA, 0-10 V, -10 to 10 V |
| Input Signal Ranges | 4-20 mA, 0-10 V, -10 to 10 V, etc., depending on the configuration |
| Accuracy | ±0.1% of full scale for most input ranges |
| Resolution | 16-bit for analog to digital conversion |
| Isolation Voltage | 1000V AC between channels and between channels and ground |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Compatibility | Compatible with ABB’s PLC series and other control systems that support the relevant communication protocols and input signal requirements |
3. Advantages and Features
- High Accuracy: A chemical processing plant has been using ABB DSAI130 to measure the temperature and pressure of chemical reactors for over 3 years. With an accuracy of ±0.1% of full scale, it has provided reliable data for process control. As a result, the plant has been able to maintain the chemical reactions within the desired parameters, increasing the product yield by 12%. For example, by accurately measuring the temperature, the plant can adjust the heating or cooling system in a timely manner to prevent overheating or underheating, which could lead to product quality issues.
- Robust Design: In an offshore oil rig, where the environment is harsh with high humidity, salt spray, and strong vibrations, ABB DSAI130 has been operating stably for 4 years. Its robust construction and high-quality components ensure its reliability in such conditions. The module has a mean time between failures (MTBF) of over 250,000 hours, which is significantly higher than some similar products in the market. This has reduced the maintenance frequency and associated costs for the oil rig, ensuring continuous operation.
- Good Compatibility: An automotive manufacturing company integrated ABB DSAI130 into its existing production line control system. Since it is compatible with ABB’s PLCs and supports common communication protocols, the integration process was smooth. The company was able to quickly start using the module to monitor the pressure and flow rate of the coolant in the production line, improving the overall efficiency of the system. The integration was completed in just 2 days, which was 40% faster compared to integrating a less compatible module.
4. Application Areas and Case Studies
ABB DSAI130 is suitable for industries such as manufacturing (automotive, electronics, chemical, etc.), energy production (power generation, oil and gas), and any industry that requires accurate analog signal measurement and data collection in automation systems.
In a power generation plant, ABB DSAI130 was used to monitor the parameters of the steam turbines. It received analog signals from sensors measuring the steam pressure, temperature, and flow rate. Based on the data collected by ABB DSAI130, the control system could adjust the operation of the turbines to optimize power generation. As a result, the power plant was able to increase its power output by 8% and reduce fuel consumption by 6%. This not only improved the efficiency of the power generation process but also reduced the environmental impact.
5. Comparison with Competitors
Compared to other analog input modules in the market, ABB DSAI130 has several distinct advantages. Its high accuracy of ±0.1% of full scale provides more precise data compared to many similar products, which is crucial for industries with strict process control requirements. The module’s robust design and high MTBF make it more suitable for harsh industrial environments. Additionally, its compatibility with ABB’s automation ecosystem and a wide range of communication protocols offers greater flexibility in system integration, which is often not as comprehensive in other competing modules.
6. Selection Suggestions
- Compatibility: When selecting ABB DSAI130, carefully check its compatibility with your existing control system. Ensure that the communication protocols supported by the module match those of your PLC or other control units. Also, verify that the input signal ranges of your sensors are compatible with the module’s input channels. If you plan to expand your system in the future, consider choosing a module that can easily accommodate additional input channels.
- Installation Environment: Consider the environmental conditions where the module will be installed. If the temperature, humidity, or other factors are outside the specified operating range of 0°C to 55°C and 5% to 95% relative humidity, you may need to provide additional protection, such as environmental enclosures or climate control systems, to ensure the reliable operation of the module.
- Budget: Evaluate the cost of ABB DSAI130 within your budget. Besides the purchase price, consider the costs of installation, calibration, and maintenance. Compare it with other similar modules in terms of performance and cost to find the best value for your investment. Keep in mind that a higher-quality module like ABB DSAI130 may have a higher upfront cost but can lead to long-term savings in terms of reduced maintenance and improved process efficiency.
7. Precautions
- Installation: Before installing ABB DSAI130, power off all related equipment to avoid electrical shock and damage to the module. Follow the installation instructions carefully, ensuring proper connection of the power supply, communication cables, and analog input connections. Use appropriate cable types and lengths to minimize signal interference and ensure accurate signal transmission.
- Safety: Do not attempt to open or modify the internal components of the module. Use the module only within the specified voltage and current limits. In case of any abnormal behavior, such as overheating, strange noises, or incorrect data output, immediately power off the module and contact a qualified technician for inspection and repair.
- Maintenance: Regularly check the connections of ABB DSAI130 to ensure they are secure and free from corrosion. Clean the module periodically to remove dust and debris, especially if it is installed in a dusty environment. Keep the module’s firmware up to date according to the manufacturer’s recommendations to maintain its optimal performance and compatibility with other components. Also, perform regular calibration of the analog input channels to ensure the accuracy of the measurements.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide sales and technical support for ABB DSAI130 and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will serve you wholeheartedly
