Description

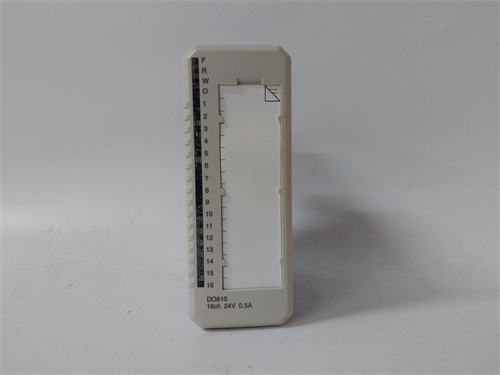

The ABB DO810 3BSE008510R1 is a digital output module that is widely used in industrial automation and control systems. The following are the specific parameters, specifications, dimensions, weight, series, features and functions of the module:
Parameters and specifications
Model: ABB DO810 3BSE008510R1
Output type: digital output
Number of channels: Usually has 16 digital output channels
Output voltage: The output voltage range is 10 to 30V
Maximum continuous output current: Maximum continuous output current is 0.5A
Grouping and isolation: The output is divided into two separately isolated groups, each with eight output channels and a voltage monitoring input
Size and weight
Size: The specific size of the module may vary from version to version or manufacturer, but there is usually a standard module size, such as a width of 15mm
Weight: The weight is usually between 0.2 and 0.27kg
series
ABB DO810 3BSE008510R1 belongs to ABB’s DO810 series of digital output modules.
trait
Highly integrated: Multiple digital output channels are integrated to simplify system wiring
Short circuit and overheat protection: Each output channel contains high side drivers for short circuit and overheat protection
Electrical isolation: Provides electrical isolation function, improve the anti-interference ability of the system
A variety of communication interfaces: support a variety of communication interfaces, such as Ethernet, serial port, CAN bus, etc., to facilitate data exchange and integration with other devices
Programmability: Usually has a programmable function, the user can be programmed to configure and control the output signal of the module
effect
ABB DO810 3BSE008510R1 plays a key role in industrial automation and control systems. It is responsible for converting the digital control signal into the actual physical output signal, such as controlling the switch of the motor, adjusting the opening of the valve, etc. By controlling these output signals, the module enables precise control of various industrial equipment and actuators.
