Description

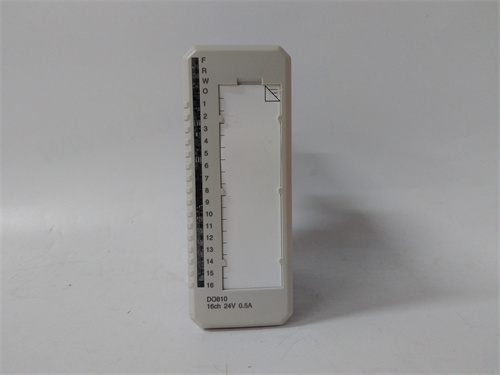

ABB DO810 is a digital output module widely used in industrial automation systems. Here is a detailed overview of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Number of Output Channels: Typically, the ABB DO810 module has multiple digital output channels, allowing for the control of multiple digital output signal sources.
Output Voltage Range: Typically, the output voltage range is from 10 to 30 volt, with a maximum continuous output current of 0.5 A.
Output Types: The module supports various digital output types, such as relay output or transistor output, which can be configured based on specific application needs.
Dimensions and Weight:
Size: The module’s dimensions are approximately 110mm x 35mm x 115mm (width x height x depth).
Weight: The weight of the ABB DO810 module is approximately 0.15kg. However, it’s always recommended to refer to official ABB documentation for precise measurements.
Series:
ABB DO810 belongs to a series of modules specifically designed for industrial. automation These series provide scalability and flexibility to configure automation systems according to application needs.
Features:
Multi-Channel Output: The module has multiple output channels, allowing for independent configuration of each channel to control different devices or execute diverse tasks.
High Reliability: ABB products, including the DO810 module, are renowned for their high reliability and stability, ensuring consistent performance in industrial environments.
Communication Interfaces: The module is equipped with standard industrial communication interfaces, such as Profibus DP or Ethernet, enabling seamless communication with PLCs or DCS systems for remote control and monitoring.
Protection and Safety: The outputs are protected against short circuits, over-voltage, and over-temperature. The module also typically includes diagnostic features for monitoring output status, detecting faults, and providing alerts for quick troubleshooting and maintenance.
Role and Function:
Digital Output Control: The ABB DO810 module serves as the interface between the automation system’s controller and digital actuators or devices, converting control signals into appropriate outputs.
System Integration: It integrates seamlessly into larger automation systems, contributing to the overall control and coordination of industrial processes.
Please note that specifications, dimensions, weight, and other details provided here are general in nature. It is crucial to consult official ABB documentation or contact a local ABB representative for accurate and up-to-date information specific to the ABB DO810 module. Additionally, specifications may vary slightly depending on the specific model or version of the module.
