Description

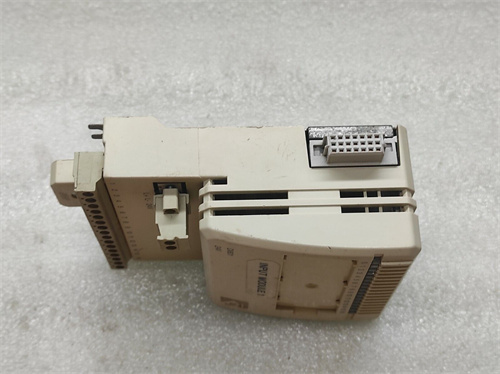

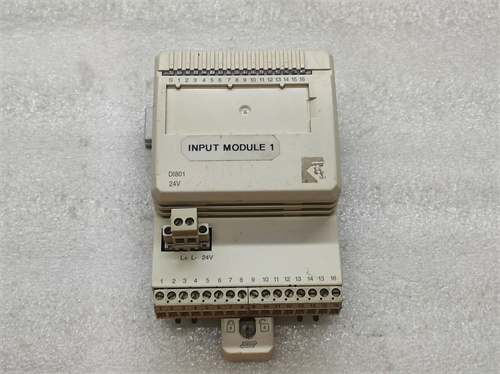

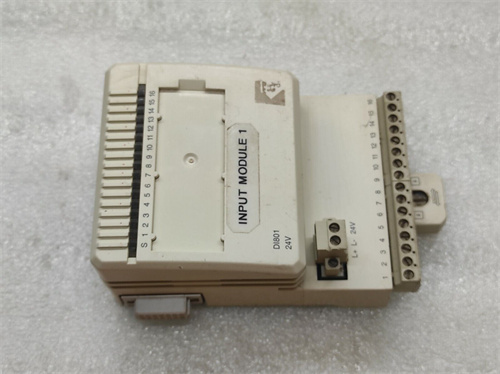

ABB DI801 is a digital input module widely used in automation control systems, particularly in industrial production processes. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Input Voltage: Typically, it operates on 24V DC.
Input Current: Maximum input current is 10mA.
Input Type: Differential.
Input Signal: Digital signal.
Channel Count: The module has 8 channels that can be extended up to 16 channels.
Working Temperature Range: -40°C to +70°C.
Dimensions and Weight:
Dimensions: 77mm x 125mm x 119mm or 58.5mm x 102mm x 86.1mm. Please note that there might be slight variations in dimensions depending on the specific version or configuration.
Weight: Approximately 200g or 0.24kg.
Series:
ABB DI801 belongs to the ABB control system product line, specifically under the I/O Products series, where it’s part of the S800 I/O modules.
Features:
Rugged Design: The module has a robust design suitable for industrial environments.
Easy Integration: It can be easily integrated into existing automation systems.
Flexible Configuration: The number of channels can be expanded from 8 to 16, providing flexibility in system design.
Diagnostic Indicators: The module includes diagnostic indicators for easy troubleshooting.
Isolation: Each input channel is isolated, providing electrical isolation and reducing interference.
Role and Function:
ABB DI801 serves as a digital input interface in automation systems, allowing for the collection and processing of digital signals from various sensors and switches. It’s typically used to monitor and control industrial processes, such as detecting the status of switches, valves, and other equipment.
