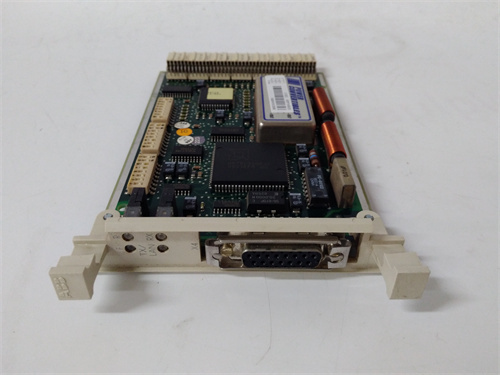

ABB CS513K01 3BSE004772R1

Description

Parameters:

• Output Voltage Range: 0 to 10 VDC¹
• Output Current Range: 0 to 20 mA¹
• Resolution: 12 bits¹
• Sampling Rate: 50 kHz¹
• Power Supply: 24 VDC¹
• Operating Temperature: -20 ℃ to 60 ℃¹

Specifications:

• Brand: ABB²³
• Model: CS513K01 3BSE004772R1¹²³⁴

Dimensions and Weight:

• Size: 100 x 100 x 80 mm¹
• Weight: 200 g¹

Series:

• Part of ABB’s Safeguard 400 series, which includes Safeguard 410 and Safeguard 415. The processor module of CS513K01 3BSE004772R1 is the same as used in these models⁵.

Features:

• High Performance: With 12-bit resolution and 50 kHz sampling rate, it offers high accuracy and speed¹⁴.
• Safety Compliance: Compliant with IEC 61850 standards for safety⁴.
• Reliability: Utilizes advanced design and manufacturing processes for reliable operation⁴.
• Modular Concept: Represents the direct result of functional modularization, abstraction, information hiding, and localization concepts¹.
• Non-contact Measurement: As a sensor utilizing ultrasonic technology, it offers non-contact measurement, unaffected by material properties².

Applications:

• It can be used in various applications including safety control, industrial automation, and machinery manufacturing¹.
• Specifically, it is a control display panel utilizing ultrasonic characteristics for material level or interval measurement².
