Description

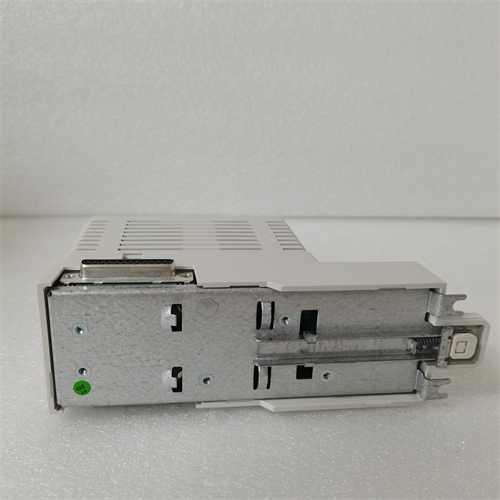

ABB CI871K01 3BSE056797R1 is an industrial communication interface module that exhibits numerous functional features and is suitable for automation and control system applications. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters:
Model Number: CI871K01
Order Code: 3BSE056797R1
Specifications:
Communication Protocol: Supports PROFINET IO, a widely used Ethernet communication protocol in industrial automation, enabling efficient and stable data transmission.
Communication Speed: Supports CH1 communication speeds selectable between 10 Mbps and 100 Mbps, as defined in the IEEE 802.3u 10/100 Base-Tx standard, providing flexibility and high-speed data transmission.
Power Supply: Receives 24VDC power through the CEX bus.
Power Consumption: Typically consumes 3.8W under normal operating conditions and has a maximum power consumption of 6W.
Dimensions & Weight:
Dimensions: 59 x 185 x 127.5 millimeters (2.9 x 7.3 x 5.0 inches).
Weight: 500 grams (with packaging, it can be 700 grams).
Series:
This module belongs to ABB’s line of industrial communication and automation equipment.
Features:
Status Indicators: Equipped with a status indicator light that turns green when operating normally and red in case of any abnormal fault, along with two traffic indicators (RxTx1 and RxTx2) for indicating communication status.
Flexibility: The module’s communication speed can be configured to suit specific application needs.
Measurement Capabilities: Supports measurement functions with alternating current and voltage inputs, allowing for numerical filtering and processing of these inputs.
Safety & Protection: Designed with IP30 protection rating and a wave-textured aluminum reinforced chassis for enhanced stability and durability in industrial environments.
Functions/Applications:
Communication Interface: Serves as a bridge between different components of an industrial automation system, facilitating data exchange and communication.
Application Integration: The module can be integrated with databases to define additional processing, such as input voting, and causal algorithms, enabling flexible application solutions.
Safety & Reliability: Ensures safe and reliable operation in automation and control systems, crucial for maintaining system stability and preventing downtime.
