Description

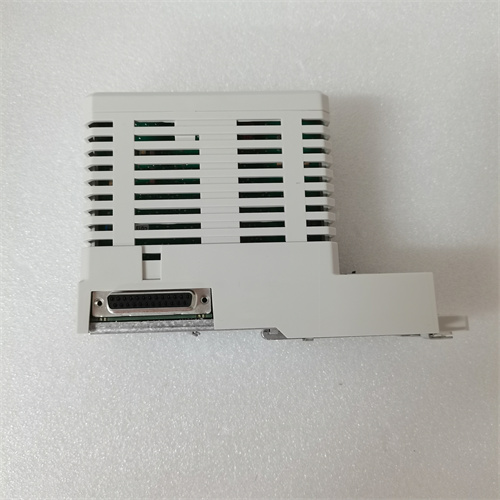

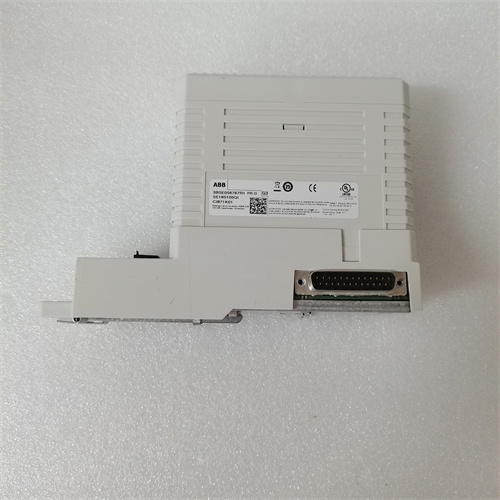

ABB CI871K01 3BSE056797R1 is a communication module designed for industrial automation applications, specifically for use with PROFINET IO communication protocol. Here’s an overview of its parameters, specifications, dimensions, weight, series, features, and function:
Parameters and Specifications:
Communication Protocol: Supports PROFINET IO, a widely used ethernet communication protocol in industrial automation.
Communication Speed: Supports CH1 communication speed, selectable between 10 Mbps and 100 Mbps, defined in the IEEE 802.3u 10/100 Base-Tx standard.
Status Indication: Features status LEDs that indicate normal operation (green) or fault conditions (red).
Power Supply: Receives 24VDC power through the CEX bus. The maximum current consumption is 250 mA. Under typical operating conditions, the power consumption is 3.8 W, with a maximum of 6 W.
Dimensions and Weight:
Dimensions: Measures 59 mm x 185 mm x 127.5 mm (2.9 in x 7.3 in x 5.0 in).
Weight: Approximately 500 grams (with packaging, the weight is 700 grams).
Series:
This module belongs to the series of communication modules designed by ABB for industrial automation systems.
Features:
Modular Design: Enables flexible configuration and easy integration into larger systems.
Online Reconfiguration and Redundancy: Supports online reconfiguration and redundancy features, enhancing system reliability and uptime.
Protection Rating: Has a protection rating of IP20, providing a certain level of dust and water resistance, suitable for most industrial environments.
Comprehensive Connectivity: Includes multiple I/O options, such as digital input/output modules, analog output modules, Modbus, and Profibus modules.
Role/Application:
The ABB CI871K01 3BSE056797R1 module serves as a communication interface between PROFINET IO devices and automation systems. It allows for seamless communication and data exchange, enabling efficient and reliable automation processes. It is commonly used in industrial automation applications where precision, reliability, and high-speed communication are critical.
