Description

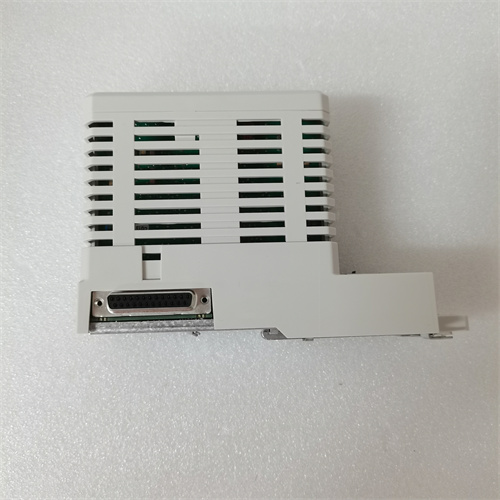

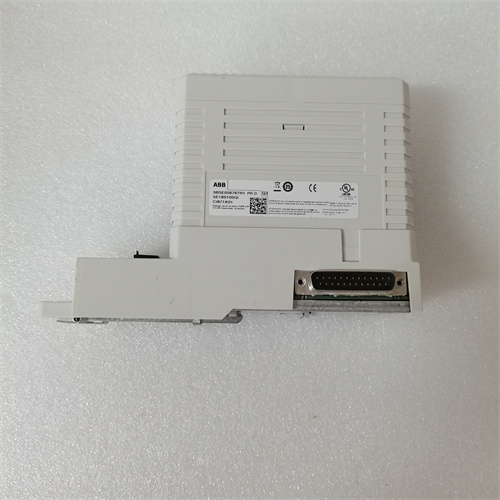

ABB CI871K01 is a communication interface module designed for industrial automation systems, particularly for use in wired or wireless networks. Here is a detailed overview of its parameters, specifications, dimensions, weight, series, features, and applications in English:
Parameters and Specifications:
Communication Protocol: CI871K01 supports the PROFINET IO communication protocol.
Transmission Speed: It offers transmission speeds of 10/100 Mbit/s, which are defined by the IEEE 802.3u 10/100 Base-Tx standard.
Connector: The module features an RJ-45 mother connector with 8 pins.
Dimensions and Weight:
Dimensions: The module measures 59 x 185 x 127.5 mm (2.9 x 7.3 x 5.0 inches).
Weight: The weight is 500 grams without packaging, and 700 grams with packaging.
Series:
CI871K01 belongs to ABB’s range of industrial automation components, potentially part of the AC 800M series.
Features:
Hot-swappable: Yes, it can be replaced without interrupting the system’s operation.
Power Supply: The module receives 24VDC power through the CEX bus.
Power Consumption: The typical power consumption is 3.8 W, with a maximum of 6 W.
Protection Class: IP20, which provides a certain level of dust and water resistance, but not suitable for harsh industrial environments.
Indicators: It has status indicators, including a green light for normal operation and a red light for fault conditions.
Output Category: The module is designed to handle digital output signals, with multiple output channels for connecting sensors, switches, and other digital devices.
Applications:
CI871K01 is widely used in industrial automation applications such as manufacturing, power systems, and chemical plants. It allows for the integration of more sensors and switches into the control system, providing comprehensive monitoring and control over the production process.
