Description

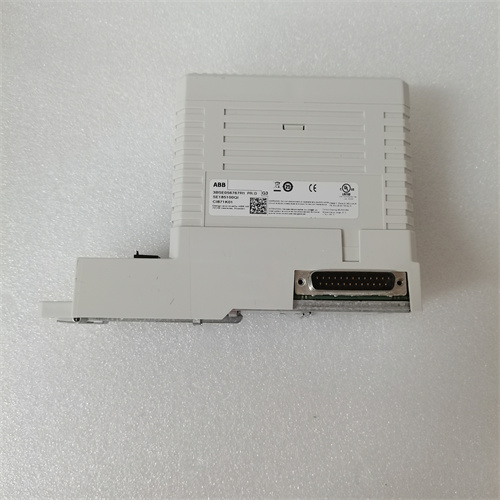

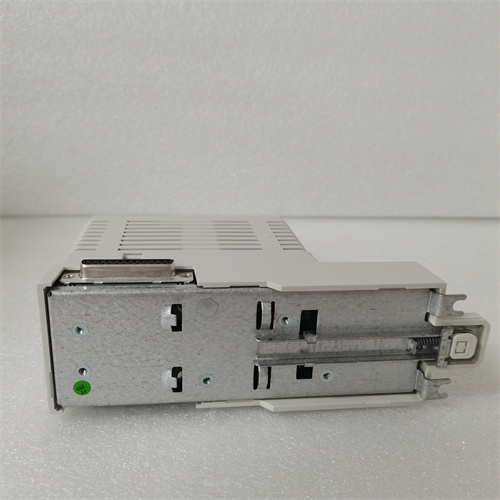

Abb ci871k01 is a communication interface module widely used in the automation and control industry.
Parameters and specifications:
Type of communication protocol: ci871k01 is supported by profinet IO, which is widely used in the automation and control industry of the etheric communication protocol.
Communication speed: ci871k01 supports the communication speed ch1, which can be selected in the range of 10 MBPS and 100 MBPS. These speeds are defined in ieee 802.3u 10/100 base-tx.
Led indicators: the module has led status indicators that in normal operation display green color, and in case of failure – red color.
Power supply and consumption: the ci871k01 module receives 24vdc power from the cex bus and its maximum current is 250 ma. In typical operating conditions, the energy consumed is 3.8 w and the maximum is 6 w.
Protection level: according to en60529 and iec 529, the module protection level is ip20, which means that it has some protection against dust and water but is not suitable for harsh industrial conditions.
Dimensions and weight: module dimensions are 59 x 185 x 127.5 mm (2.9 x 7.3 x 5.0 in.), weight 500 g (package 700 g.).
Areas of application:
Abb ci871k01 is widely used in various fields, including, but not limited to, industrial automation, electricity, water treatment, pharmaceuticals, and lifescience. It can also be used in the distributed control network (DCS) to monitor and manage production processes, which improves the efficiency and quality of production.
