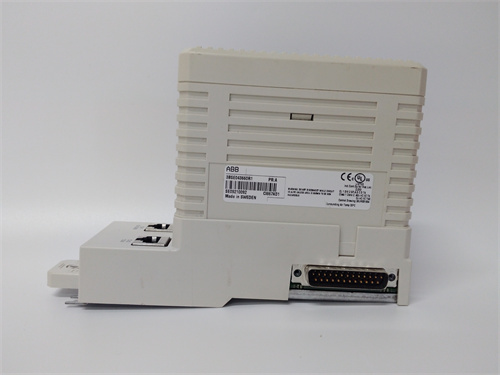

ABB CI867K01

Description

Parameters and Specifications:

• Manufacturer: ABB
• Model: CI867K01
• Part Number: 3BSE043660R1
• Protocol: Modbus TCP
• Transmission Speed: 10/100 Mbit/s (Ch1), 10 Mbit/s (Ch2)
• Hot-swappable: Yes
• Connector: RJ-45 Female (8 pins)
• Operating Temperature: 0 to +55 °C (Storage -40 to +70 °C)
• Protection Class: IP20
• Corrosion Protection: Compliant with G3
• EMC and CE Marking: Compliant with EMC Directive 2004/108/EC¹²
• Electrical Safety: UL508, IEC/EN 61131-2
• Hazardous Area Classification: UL/CSA 60079-15¹²

Dimensions and Weight:

• Width: 59 mm to 60 mm¹²
• Height: 185 mm²
• Length: 127.5 mm²
• Weight: 0.62 kg³

Series:

• Not explicitly stated in the search results, but it is likely a part of ABB’s industrial automation series.

Features:

• Multi-Communication Interface: Supports Modbus TCP, Ethernet, serial ports, and CAN bus³.
• High-Speed Data Processing: Equipped with a high-performance processor for fast data transmission and processing³.
• High Reliability: Provides excellent protection performance for stable operation in harsh industrial environments³.
• Easy Configuration and Management: Configurable and monitorable via standard network management tools³.
• Wide Application Range: Suitable for industrial automation, process control, PLC systems, data acquisition and monitoring, and remote monitoring and operation³⁴.

Role and Function:

ABB CI867K01 is an interface communication module designed for industrial automation systems. It enables communication between various industrial devices, such as sensors, actuators, PLCs, and DCS systems. It is widely used in applications like industrial automation, process control, data collection and monitoring, and remote monitoring and operation³⁴.
