Description

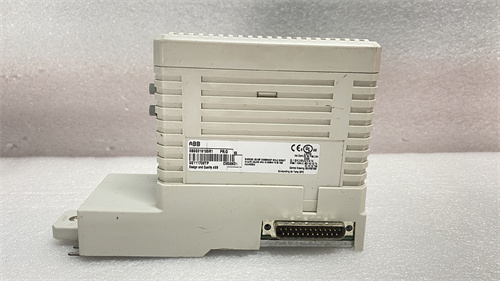

ABB CI858K01 3BSE018135R1 is a communication module specifically designed for ABB control systems. Here is a summary of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Input Voltage: 24VDC.
Current: 100mA.
Communication Protocol: PROFIBUS DP.
Working Temperature: -40°C to +85°C.
Storage Temperature: -40°C to +85°C.
Program Capacity: 512MB.
Data Transmission Rate: Up to 1.25MB/s.
Dimensions and Weight:
Dimensions: 12.4 x 7.4 x 4.4 centimeters.
Weight: 0.3 kilograms.
Series:
It belongs to the ABB CI858 series of communication modules.
Features:
CEX Bus Interface: Allows communication between CI858 and AC 800M with a maximum data transmission rate of approximately 1.25MB/s.
DSP Processor: Motorola digital signal processor DSP56303 with a CPU frequency of 72 MHz.
I/O Channels: Supports up to 12 I/O channels per unit, capable of transmitting 2 data sets per millisecond.
Dual-Port RAM (DPRAM): Enables communication between AC 800M and CI858, with features like interrupt handling, semaphores, and ONCE port for reprogramming.
Role/Function:
The ABB CI858K01 3BSE018135R1 communication module is intended for use in ABB control systems, facilitating data exchange and communication between various components and devices.
It is suitable for a wide range of applications in industrial automation, robotics, logistics, and building systems.
Please note that the specifications and features mentioned above are based on the available information. For the most accurate and up-to-date specifications, it is recommended to consult the official ABB documentation or contact ABB directly.
