Description
Parameters and Specifications:
- Product Type: S100 I/O Interface
- Transmission Speed: 10 Mbit/s
- Max Units on CEX Bus: 12
- Connector: Miniribbon (36-pin)
- 24V Consumption Typ.: 120 mA
- Operating Temperature: 55 °C
- Protection Class: IP20 according to EN60529, IEC 529
Dimensions and Weight:
- Dimensions (HxWxD): Approx. 18.5cm x 5.9cm x 12.75cm
- Weight: 0.7 kg
- Shipping Weight: 1.5 Kg
Features:
- Hot-Swappable: Allows for easy replacement without disrupting system operation
- Reusable Existing I/O Installation: Can reuse most existing I/O installations, including terminals and field wiring
- Code Locking: Prevents installation of incompatible components
- High Integration: High integration I/O module with SIL3 certification
- Flexible Configuration and Installation: Provides flexibility in system design and deployment
- High Reliability and Accuracy: Ensures stable and accurate operation
Application/Role:

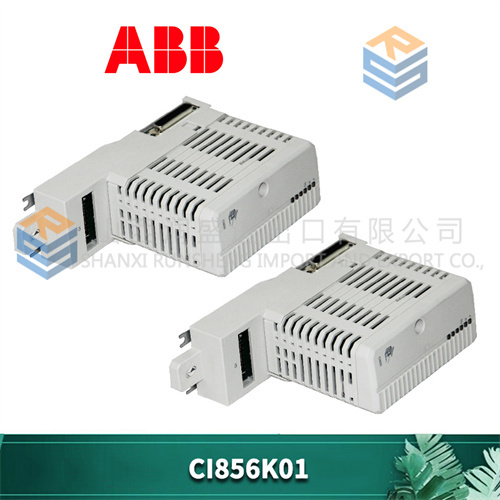

- The CI856K01 is a communication interface module for the AC 800M controller system. It provides communication between the AC800M and S100 I/O system
- It is used to connect up to 5 S100 I/O racks, with each rack supporting up to 20 I/O boards
- It is a key component in industrial automation systems, enabling efficient data exchange between controllers and I/O devices
