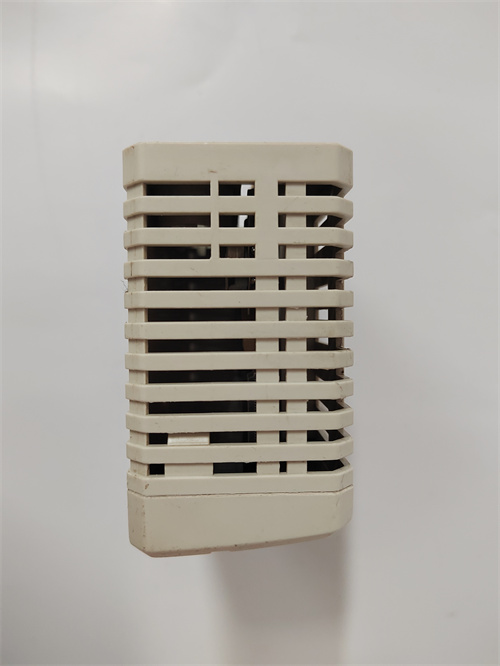

ABB CI854A 3BSE030221R1

Description

ABB CI854A 3BSE030221R1

1. Product Description

2. Product Parameters

• Power Supply:
  • Input Voltage: 24 VDC (Typical range: 19.2 – 28.8 VDC)
  • Power Consumption: Approximately 5 W
• Communication Interfaces:
  • PROFIBUS-DP/V1 with two DP ports
  • Also supports Ethernet/IP and Modbus TCP/IP for enhanced connectivity
• Data Transfer Rate:
  • Maximum data rate of 12 Mbit/s on PROFIBUS-DP
• Device Compatibility:
  • Compatible with ABB AC 800m controllers
  • Can support up to 124 slave devices on a single segment
• Operating Temperature:
  • Range: +5 °C to +55 °C
• Storage Temperature:
  • Range: -40 °C to +70 °C
• Relative Humidity:
  • 5% to 95% (non-condensing)

3. Advantages and Characteristics

• High Reliability: In a large-scale chemical plant, the ABB CI854A 3BSE030221R1 has been in operation for over 3 years without any major communication failures. Its robust design and high-quality components ensure stable performance even in harsh industrial environments with high levels of electromagnetic interference.
• Easy Integration: It can be quickly and easily integrated into existing ABB automation systems. For example, in an automation upgrade project in a manufacturing factory, the installation and configuration of the CI854A 3BSE030221R1 were completed within a few hours, minimizing the downtime of the production line.
• Versatile Connectivity: With support for multiple communication protocols such as PROFIBUS-DP/V1, Ethernet/IP, and Modbus TCP/IP, it can connect to a wide variety of devices. This allows for seamless integration with different subsystems in an industrial network, providing greater flexibility in system design.

4. Application Areas and Application Cases

• Application Areas: The ABB CI854A 3BSE030221R1 is suitable for various industries including manufacturing, energy, chemical, and water treatment. It is used in scenarios such as process control, factory automation, and remote monitoring and control systems.
• Application Case: In a power generation plant, the ABB CI854A 3BSE030221R1 was used to connect the control system to various sensors and actuators on the turbine. It enabled real-time monitoring of parameters such as temperature, pressure, and speed. By providing accurate and timely data, it helped the operators to optimize the operation of the turbine, resulting in a 10% increase in power generation efficiency and a reduction in maintenance costs.

5. Comparison with Competitors

6. Selection Suggestions

• Compatibility: When selecting the ABB CI854A 3BSE030221R1, ensure that it is compatible with your existing control system and other devices in the network. Check the communication protocols and interface requirements to avoid any compatibility issues.
• Installation Environment: Consider the operating temperature, humidity, and electromagnetic interference levels of the installation location. The module is designed to operate within a specific temperature and humidity range, so make sure the environment meets these requirements. Also, take measures to protect it from strong electromagnetic fields if necessary.
• Budget: While the ABB CI854A 3BSE030221R1 offers high performance and reliability, it is important to consider your budget. Compare the cost with other similar products, but also factor in the long-term benefits such as reduced maintenance costs and improved system efficiency.

7. Precautions

• Safety Regulations: When installing the ABB CI854A 3BSE030221R1, make sure to follow all safety regulations. Turn off the power supply before installation to avoid electrical shock. Ensure proper grounding of the module to prevent electrical hazards.
• Maintenance Recommendations: Regularly check the module’s status indicators to ensure it is operating normally. Clean the module periodically to remove dust and debris that may affect its performance. If any abnormal behavior is detected, such as error lights or communication failures, refer to the user manual for troubleshooting steps or contact ABB’s technical support for assistance.
