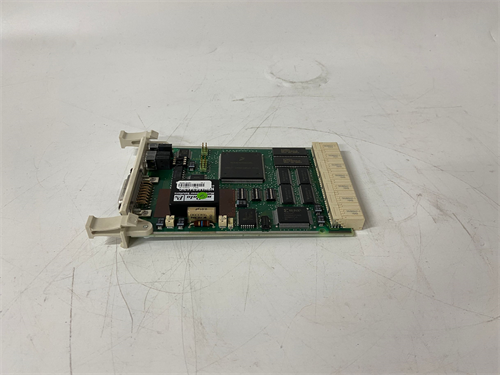

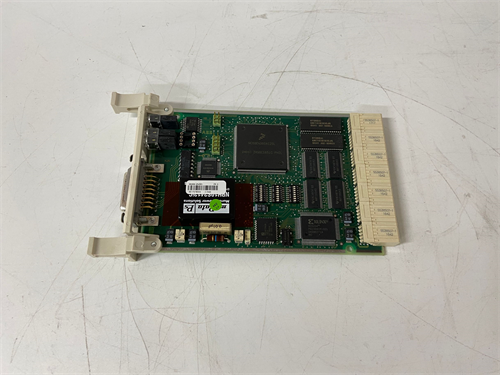

ABB CI546

Description

Parameters and Specifications:

• Control Principle: Digital Input/Output (DI/DO)¹⁶.
• Power Supply Voltage: 24VDC¹.
• Input Current: 250mA¹.
• Output Current: 500mA¹.
• CPU Speed: 800MHz⁵.
• Memory: 2GB¹.
• Environmental Temperature: -20℃ ~ +70℃¹.
• Interfaces: Ethernet, Serial, USB¹.

Dimensions and Weight:

• Size: 100mm x 75mm x 35mm¹.
• Weight: 200g¹.

Series:

• ABB series of digital expansion modules¹².

Features:

• Digital Input/Output: Provides digital input channels for monitoring external digital signals and digital output channels for controlling external digital devices³⁴.
• High Reliability: Designed for stable operation in industrial environments¹⁶.
• Communication Interface: Supports common industrial communication protocols for integration with other devices and control systems³⁴.
• Protection Level: May have a protection rating to adapt to different environmental conditions³⁴.
• Modular Design: Easy to integrate into control systems, providing flexibility and scalability⁴.
• Diagnostic Function: Provides diagnostic and monitoring capabilities for timely detection and resolution of issues⁴.

Applications:

• Industrial Automation: Used for controlling and monitoring digital devices and signals in manufacturing processes¹³⁴.
• Power Systems: Applicable to digital input and output control in power systems¹⁴.
• Process Control: Used for digital signal processing and control in process control fields such as chemicals, petroleum, natural gas, etc.⁴.
• Transportation Systems: Potentially applied in traffic signal control and monitoring systems⁴.
• Building Automation: Used in building management systems such as lighting control, access control systems, etc.¹⁴.
• Environmental Monitoring: Suitable for monitoring environmental parameters³
