Description

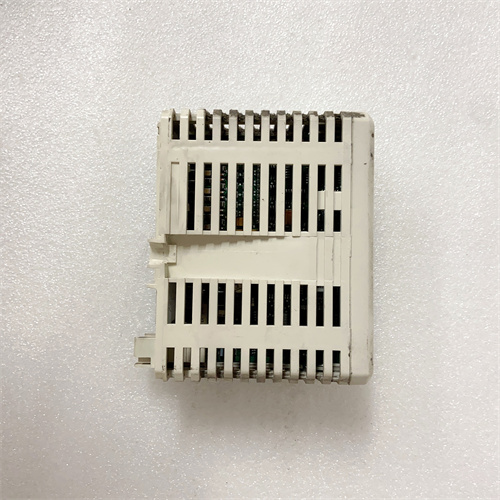

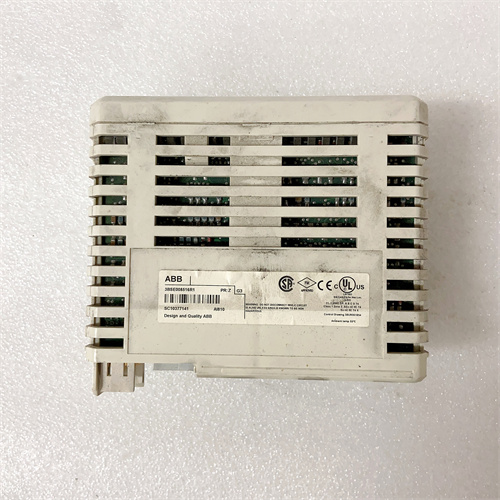

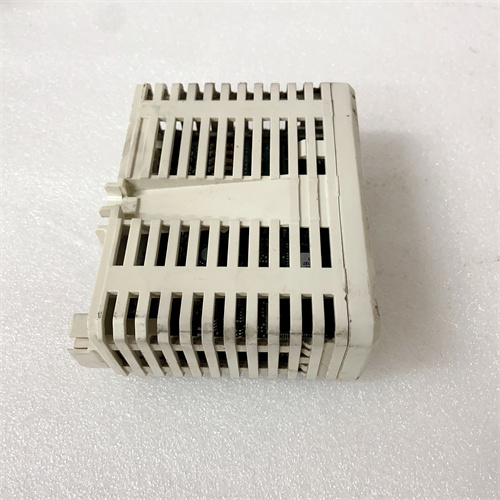

ABB AI810 is an analog input module designed for industrial automation systems. It’s primarily used to receive analog signals from sensors, instruments, and other analog devices. Here’s a summary of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Input Channels: AI810 offers 8 input channels, which can be configured as voltage or current inputs.
Input Impedance: The voltage input impedance is typically 290 kΩ, while the current input impedance is around 250 ohms (including PTC).
Input Voltage Range: The module can handle input voltages up to 30V DC without damage.
Resolution: AI810 provides a 12-bit resolution for analog inputs.
Isolation: The input channels are isolated from ground.
Output: The module converts analog inputs to digital form for further processing in the system.
Dimensions:
The exact dimensions of the AI810 module may vary depending on the housing and connector type. However, typically, industrial automation modules like AI810 have a standardized size for easy integration into racks and cabinets. For precise dimensions, it’s recommended to refer to the official ABB documentation or contact their technical support.
Weight:
The weight of the AI810 module will also depend on its physical construction and materials used. ABB typically provides this information in their product datasheets. Please consult the official documentation for the exact weight.
Series:
AI810 belongs to ABB’s line of analog input modules designed for industrial automation applications.
Features:
Versatile Input: AI810 accepts a wide range of analog input signals, such as 0…20mA, 4…20mA, 0…10V, or 2…10V DC, providing flexibility in system design.
Protection Mechanisms: The module includes protection against overvoltage and short circuits, ensuring reliable operation even in harsh industrial environments.
Compatibility: AI810 is compatible with various industrial automation systems and can be easily integrated into existing setups.
Communication Capabilities: The module can communicate with other components in the system, allowing for centralized monitoring and control.
Role/Functions:
Signal Acquisition: AI810’s primary function is to acquire analog signals from sensors and transducers in industrial processes.
Signal Conversion: The module converts these analog signals into digital data that can be processed by a PLC (Programmable Logic Controller) or other control systems.
Automation Integration: AI810 plays a crucial role in industrial automation systems, enabling precise control and monitoring of industrial processes.
