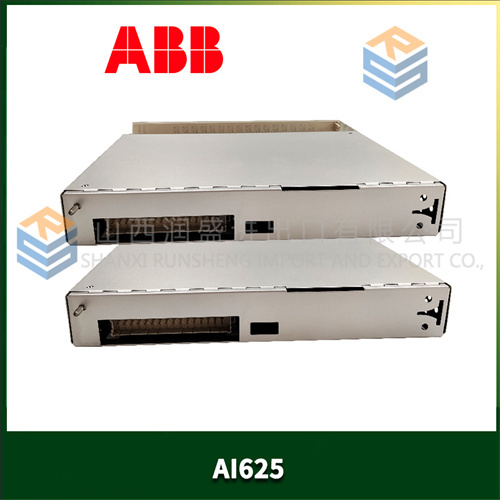

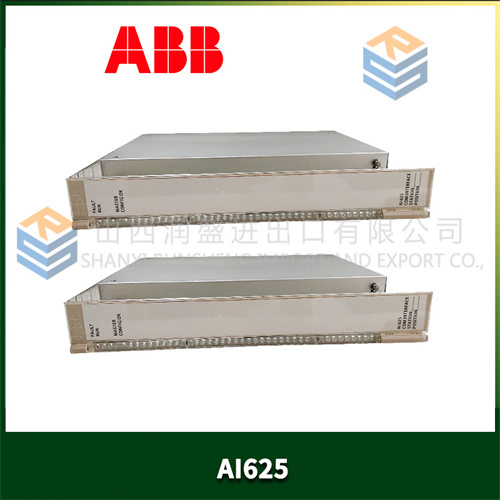

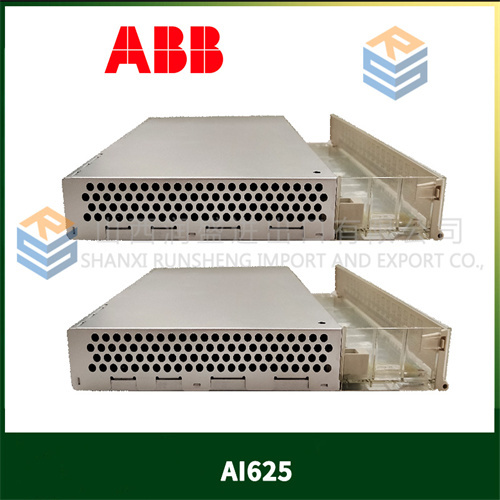

ABB AI625

Description

ABB AI625

1. Product Description

2. Product Parameters

• Input Channels: 16 channels
• Input Ranges:
  • 4-20 mA
  • 0-10 VDC
  • ±10 VDC
• Resolution: 16-bit
• Accuracy: ±0.1% of full scale
• Sampling Rate: Up to 100 Hz
• Power Supply: 24 VDC
• Power Consumption: Approximately 2 W
• Communication Interfaces:
  • Profibus DP
  • Ethernet
• Operating Temperature Range: -20 °C to 60 °C
• Humidity Range: 5% to 95% (non-condensing)
• Dimensions: 127 mm x 50 mm x 175 mm
• Weight: Approximately 0.5 kg

3. Advantages and Characteristics

• High Precision: With a 16-bit resolution and an accuracy of ±0.1% of full scale, the ABB AI625 provides highly accurate analog signal conversion. In a chemical plant, it was used to monitor the concentration of a chemical solution. The precise data provided by the AI625 allowed for accurate control of the chemical process, resulting in a 15% improvement in product quality compared to using a less precise module.
• Reliability: The robust design and advanced self-diagnostic capabilities of the AI625 ensure its reliable operation in harsh industrial environments. In a mining operation, where there is significant dust, vibration, and temperature fluctuations, the AI625 has been running continuously for over 4 years without any major failures, ensuring the uninterrupted operation of the monitoring and control system.
• Easy Integration: The excellent compatibility of the ABB AI625 with other ABB products and systems makes it easy to integrate into existing automation solutions. In an industrial automation upgrade project, the AI625 was easily integrated into an existing ABB DCS system. The process was completed quickly, reducing downtime and saving costs associated with system integration.
• Flexibility: The support for a variety of input ranges and communication protocols provides flexibility in sensor selection and system integration. This allows the AI625 to be used in a wide range of industrial applications, from simple data acquisition to complex process control.

4. Application Areas and Application Cases

• Application Areas: The ABB AI625 is suitable for a wide range of industries, including manufacturing, energy, chemical, and water treatment. It is used in applications such as process control, quality control, energy management, and environmental monitoring.
• Application Case: In a power generation plant, the ABB AI625 was used to monitor the temperature, pressure, and flow rate of the steam turbines. By accurately measuring these parameters, the control system could adjust the operation of the turbines in real-time to optimize power generation efficiency. As a result, the plant was able to increase its power output by 10% and reduce fuel consumption by 8%, demonstrating the significant impact of the AI625 on improving the performance of the power generation process.

5. Comparison with Competitors

6. Selection Suggestions

• Compatibility: When selecting the ABB AI625, ensure that it is compatible with your existing control system. Check the communication protocols and interface requirements to ensure seamless integration. If you plan to use it with a third-party system, verify that the system supports the relevant communication standards.
• Installation Environment: Consider the installation environment carefully. The AI625 can operate in a wide temperature and humidity range, but it is still important to ensure that the installation location meets the specified environmental conditions. Avoid installing it in areas with excessive dust, moisture, or electromagnetic interference.
• Budget: While the ABB AI625 offers high performance and reliability, it is important to consider your budget. Compare the cost of the AI625 with other similar products, but also factor in the long-term benefits, such as improved accuracy, reliability, and reduced maintenance costs.

7. Precautions

• Safety Specifications: When installing the ABB AI625, ensure that the power is turned off to avoid electrical shock. Follow the installation instructions carefully to ensure proper wiring and grounding. Use appropriate tools and equipment to prevent damage to the module during installation.
• Maintenance Recommendations: Regularly check the operation of the AI625. Monitor the input signals to ensure they are within the expected range. Clean the module periodically to remove dust and debris that may affect its performance. If any abnormal behavior is detected, such as incorrect readings or communication issues, stop using the module immediately and contact a qualified technician for troubleshooting and repair.
