Description
Series:

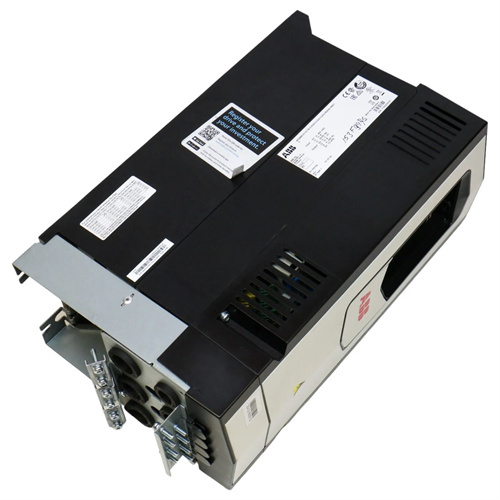

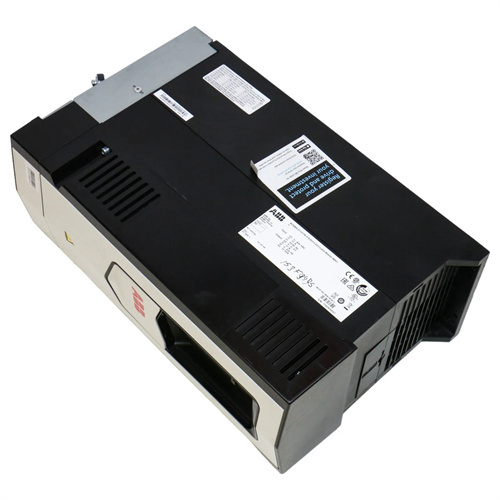

It belongs to the ABB ACS880 series.
Parameters and specifications:
Supply voltage: AC380V.
Light load power (KW) : 75.
Heavy duty power (KW) : 55.
Power (KW) : 75.
Output current: 145A.
Control mode: Support a variety of control modes, such as speed control, pitch control, PID control, etc.
Motor parameters: The inverter sets the power, current, voltage and speed of the motor in the parameters.
Size and weight:
Net weight: 42.2kg.
Product depth: 357 mm.
Product height: 727 mm.
Product net width: 252 mm.
Dimensions: R6.
Please note that the dimensions and weights given here are specific values, but other detailed dimensions may also need to refer to official information.
Features:
Built-in standard dynamic chopper.
Protection level: IP21.
Supply voltage: Low voltage.
Filter: Built-in EMC filter.
With detailed fault diagnosis and corrective measures, when a fault is detected, the fault is displayed on the digital operation panel, and the fault contact output and motor free shutdown are prompted.
Functions:
Mainly used for motor frequency conversion speed control, by adjusting the voltage and frequency of the output power supply, according to the actual needs of the motor to provide the required power supply voltage, and then achieve the purpose of energy saving and speed regulation.
It is widely used in various industrial automation systems that require precise control of motor speed and torque, such as conveyor belts, fans, pumps, etc.
