Description

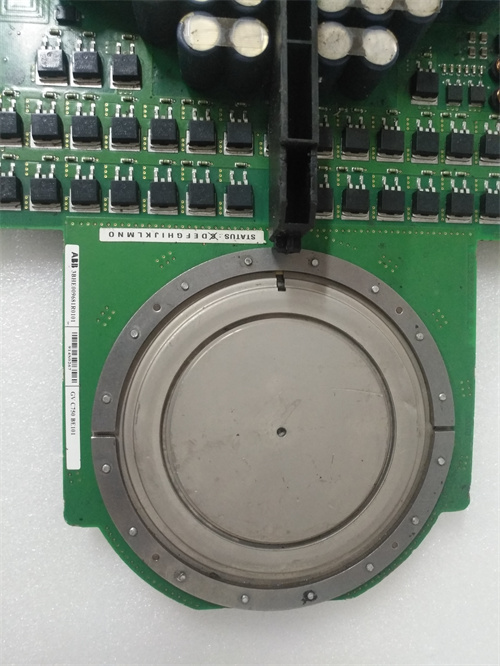

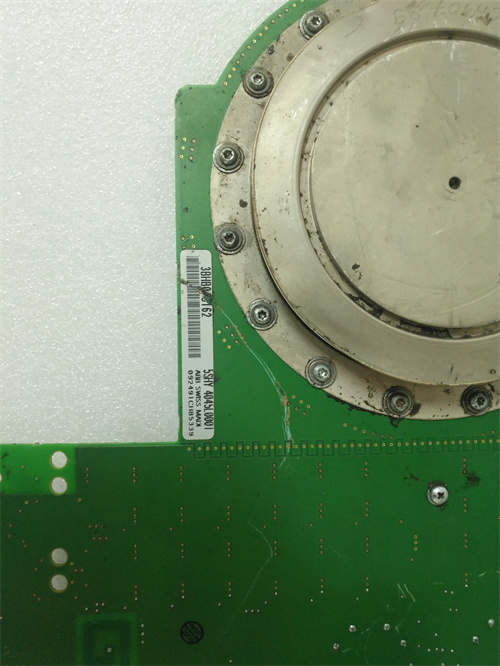

ABB 5SHY4045L0001 3BHB018162R0001 is an IGCT (Integrated Gate commutator thyristor) module. The following are detailed answers about the parameters, specifications, dimensions, weight, series, features and functions of this product:
argument
Model: 5SHY4045L0001 3BHB018162R0001
Voltage and current: Specific values are not provided, but IGCT modules are commonly used in high voltage and high power applications
Frequency: 50Hz
specification
Size: 672×1234mm
Weight: Specific values are not provided, but generally IGCT modules are heavier because they need to withstand high voltages and currents
series
ABB 5SHY4045L0001 3BHB018162R0001 is part of ABB’s portfolio of industrial automation products, particularly those related to power electronics and motor control.
trait
Efficiency: Dynamic loss is reduced by approximately 50% thanks to the buffering structure and shallow emitter technology.
High reliability: IGCT combines the advantages of GTO with the stable turn-off capability of the transistor, making it highly reliable in power electronics applications.
High integration: The integration of the GTO chip with the anti-parallel diode and the gate driver circuit simplifies the circuit design.
Wide application: IGCT is suitable for medium and high pressure applications from 0.5 MVA to hundreds of MVA, especially in new energy transmission and large-scale energy storage.
effect
The main role of ABB 5SHY4045L0001 3BHB018162R0001 is as a power electronic switch for controlling and regulating high voltage and current. It plays a key role in many industrial applications, especially in motor control, grid management and renewable energy systems.
