Description

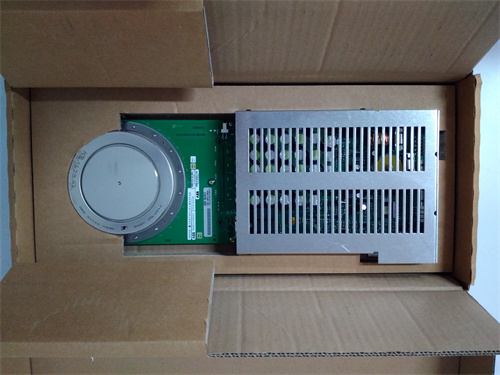

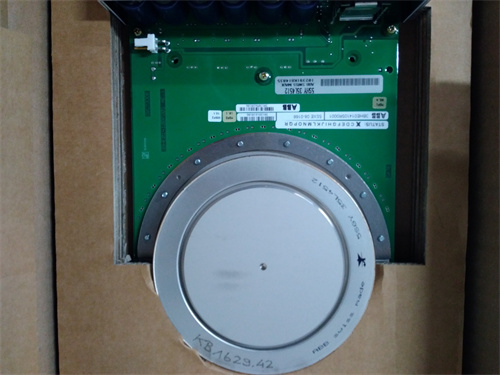

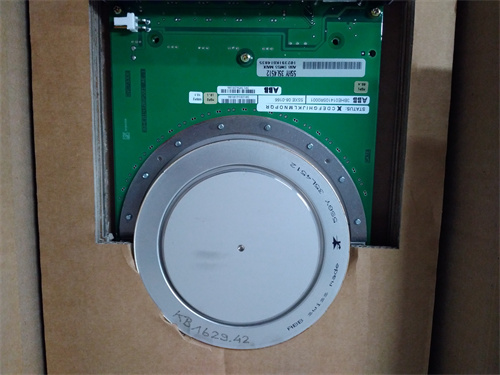

ABB 5SHY35L4512 is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module specifically designed for industrial automation and power electronics applications. Below is a breakdown of its parameters, specifications, dimensions, weight, series, features, and applications in English:
Parameters:
Maximum RMS On-State Current: 3300 A.
Off-State Repeat Peak Voltage: 4500 V.
Repeat Peak Reverse Voltage: 10 V.
Operating Temperature Range: -40 °C to 125 °C.
Specifications:
High Reliability: The module is designed for reliable operation in harsh industrial environments.
High Electromagnetic Immunity: Ensures stable operation in electrically noisy environments.
Simple Control Interface: With status feedback for easy integration and monitoring.
Dimensions and Weight:
Dimensions: The approximate size is 36*58*74 mm. However, please note that dimensions may vary slightly depending on the packaging and exact configuration.
Weight: Exact weight information is not available in the search results. It is recommended to refer to the official product documentation for accurate weight specifications.
Series:
ABB 5SHY35L4512 belongs to the series of high-performance IGCT modules offered by ABB.
Features:
Optimized for Low Frequency: Can operate efficiently at frequencies below 100 Hz.
Low On-State Voltage: Features a low on-state voltage of 2V at 4000A, which contributes to reduced power losses.
Wide Temperature Range: Suitable for operation in a wide range of temperatures, making it suitable for various industrial applications.
Surface Mounting Capability: The module can be surface-mounted, providing flexibility in installation and integration.
Terminal Configuration: Features no-lead (NO LEAD) terminals with end positioning.
Role/Application:
ABB 5SHY35L4512 is typically used in high-power applications that require precise and reliable control of electrical equipment. It finds widespread use in industrial automation systems, power generation, and transmission, as well as in large-scale energy conversion systems. Its high reliability, electromagnetic immunity, and optimized performance make it a suitable choice for critical applications that demand uninterrupted and efficient operation.
