Description

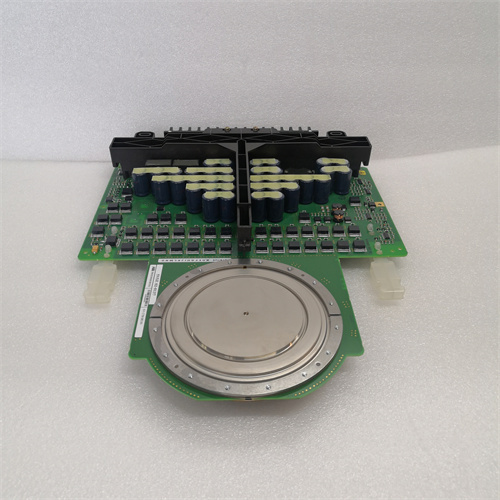

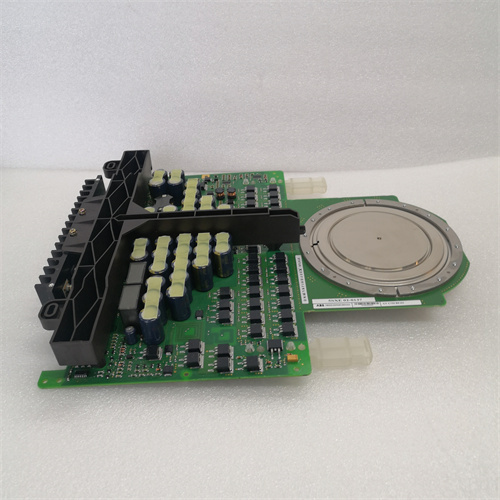

ABB 5SHY3545L0009 is an advanced controllable silicon (IGCT) module specifically designed for use in high-power applications such as renewable energy transmission and large-scale energy storage systems. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters:
The 5SHY3545L0009 IGCT module is rated for high voltage and current handling capabilities, making it suitable for demanding power control tasks.
It has a low inductance design to minimize power losses and improve efficiency.
Specifications:
The module incorporates a GTO chip, a reverse-parallel diode, and a gate drive circuit, all integrated in a low-inductance manner.
It offers high-speed switching capabilities and precise control of power flow.
Dimensions and Weight:
The exact dimensions of the 5SHY3545L0009 module may vary depending on the specific packaging and accessories included.
Typically, the weight is around 1.6kg.
Series:
ABB 5SHY3545L0009 belongs to a series of high-performance IGCT modules specifically designed for industrial automation and power control applications.
Features:
High Efficiency: The module utilizes advanced controllable silicon technology and circuit design to achieve high-efficiency power control and conversion, leading to reduced energy consumption and heat generation.
High Reliability: Strict quality control and testing ensure stable operation under various environmental conditions, minimizing the risk of failures and maintenance costs.
Multiple Configurations: ABB offers various specifications and models to cater to different application scenarios and control requirements.
Ease of Use: Supports multiple communication protocols and interfaces for seamless integration with other industrial automation equipment. It also allows for programmable control and parameter settings, facilitating customization and development.
Functions/Applications:
Power Control: The 5SHY3545L0009 module is suitable for regulating and controlling voltage and current in power systems, enhancing their efficiency and stability.
Motor Control: It can be used for motor start-up, speed regulation, and braking, thereby improving motor efficiency and control performance.
Heating and Cooling Systems: In applications such as electric furnaces, induction heating systems, and electric heaters, the module controls the power to the heating elements for precise temperature control.
Lighting Systems: It can be employed in dimming systems to control the brightness of lighting equipment, contributing to energy savings.
