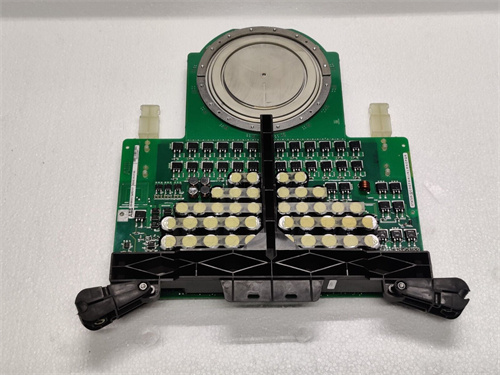

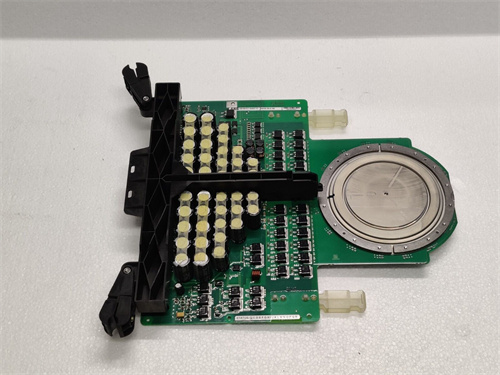

ABB 5SHX2645L0002 is a module widely used in industrial automation systems, offering a range of specifications, features, and capabilities. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Rated Voltage and Current: ABB 5SHX2645L0002 has a rated voltage of 3300V AC and a rated current of 2600A. This ensures stable and reliable operation in high-voltage environments.
Peak Forward Current and Conduction Loss: With a peak forward current of 4000A and a low conduction loss of 2.5V, it efficiently handles high-power demands while minimizing energy loss.
Trigger and Operating Conditions: The gate trigger current is 0.5A, and the module can operate within a temperature range of -40°C to +85°C.
Dimensions and Weight:
Dimensions: The module measures 385mm x 250mm x 120mm, making it suitable for various installation spaces.
Weight: It has a weight of approximately 22kg, indicating its solid and durable construction.
Series:
ABB 5SHX2645L0002 belongs to the SHX series of IGCT (Integrated Gate Commutated Thyristor) modules from ABB. This series is designed for high-performance applications in power electronics.
Features:
High-Power Handling: The module is designed to handle high-power applications with its high-voltage and current ratings, making it suitable for use in large-scale industrial systems.
Fast Switching: With zero differential voltage under high-speed switching, it offers quick response times for precise control.
Monitoring Capabilities: The module includes features for monitoring power supply voltage, input triggers, and thermal faults, providing valuable diagnostic information.
Cooling Options: Optional cooling fans can be used to enhance thermal performance, ensuring reliable operation even under high-temperature conditions.
Environmental Compatibility: The module meets ROHS standards and has an IP20 protection rating, indicating its resistance to environmental factors.
Application and Role:
Reactive Power Compensation: ABB 5SHX2645L0002 finds widespread application in reactive power compensation in power systems, including industrial grids, commercial buildings, data centers, wind farms, and photovoltaic power stations.
Control and Monitoring: It serves as a critical component in automation systems, responsible for controlling and monitoring various industrial devices and processes.
