Description

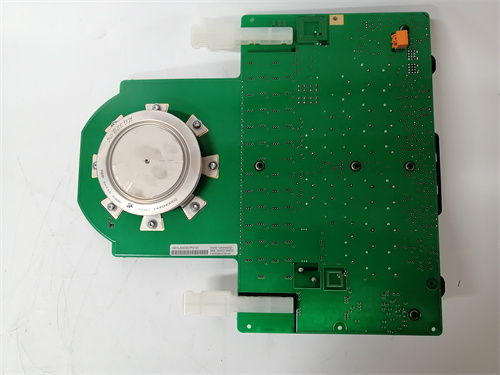

ABB 5SHX1445H0002 3BHL000387P0101 is a specific model of a controllable silicon module or drive board, which combines advanced silicon control technology with a sophisticated control unit design. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Type: ABB 5SHX1445H0002 3BHL000387P0101 is an IGBT series high-frequency drive board, primarily utilizing the SG3525A for PWM pulse formation.
Output Pulse Frequency Range: It offers an output pulse frequency range of 20KHZ to 60KHZ, with a dead time that can be adjusted.
Power Range: This module has a power range of 10KW to 120KW, suitable for various high-power applications.
Control: It is designed for full-bridge inverter series resonant induction heating device frequency modulation and power adjustment.
Dimensions and Weight:
Exact dimensions and weight information for the ABB 5SHX1445H0002 3BHL000387P0101 module may vary depending on the specific packaging and configuration. It is advisable to refer to the official product documentation or contact ABB for detailed information on dimensions and weight.
Series:
This module belongs to a series of ABB products designed for industrial automation and control applications.
Features:
Highly Integrated: The module has a reduced number of wiring connections and centralized control, making it easier to integrate into larger systems.
Protection and Monitoring: It includes various protection features, such as over-current, over-voltage, and water-loss protection, as well as linear and switch-type Hall protection interfaces.
Versatile Applications: The module is suitable for a wide range of applications, including motor control, power management, and lighting regulation in industrial automation, power electronics, and energy management systems.
Functions and Applications:
ABB 5SHX1445H0002 3BHL000387P0101 is primarily used for precise power control and regulation in industrial applications. It can be employed in scenarios where high-frequency drive signals are required, such as in inverter systems for induction heating, motor drives, and other power electronics applications. Its ability to modulate frequency and adjust power output makes it suitable for achieving stable and efficient operation of connected equipment.
