Description

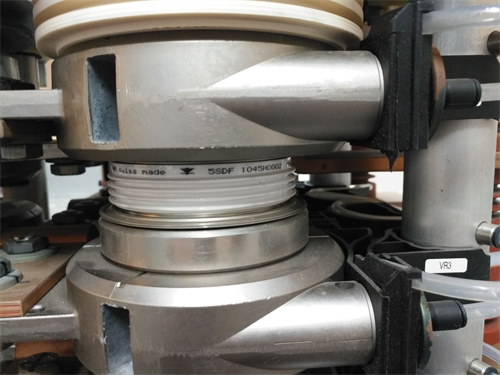

ABB 5SDF1045H0002 is a thyristor module or thyristor. The following information is available about its parameters, specifications, dimensions, weight, series, characteristics and functions:
Parameters and specifications:
Working voltage: 220V.
Output frequency: 20Hz.
Processing speed: 230μs.
Ambient temperature: 26℃.
Ambient humidity: 60%.
Series:
5SDF Series.
Features:
Working principle: As A thyristor, its anode A and cathode K are connected with the power supply and load to form the main circuit of the thyristor, and the pole G and cathode K of the thyristor are connected with the device controlling the thyristor to form the control circuit of the thyristor.
Type: According to the turn-off, turn-on and control mode, pin and polarity, package form, current capacity, turn-off speed and other ways of classification.
Control mode: Gate shutdown (GTO).
Pins and polarity: quadrupole.
Current capacity: Medium power.
Turn-off speed: high frequency (fast).
Shape: Flat plate type.
Rated average current: 3000A.
Forward transition voltage: 66V.
Functions:
General application: ABB 5SDF1045H0002 plays a very important role in the control of automation systems and is suitable for various control and rectification circuits.
High voltage and high current operation: with the characteristics of silicon rectifier devices, it can work under high voltage and high current conditions, and its working process can be controlled.
A variety of electronic circuits: widely used in controlled rectifier, AC voltage regulation, contactless electronic switch, inverter and frequency conversion and other electronic circuits.
