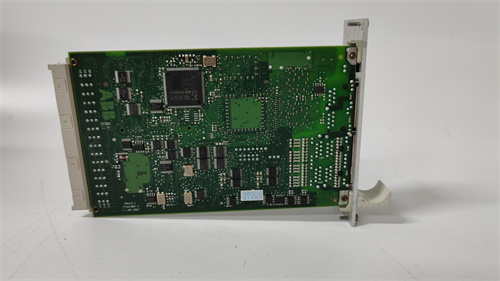

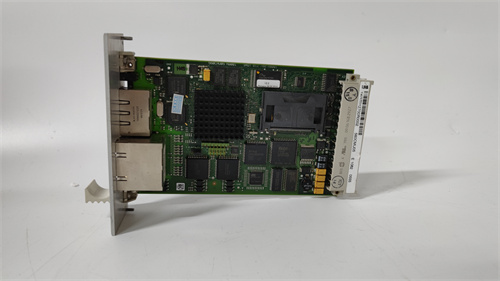

ABB 560CMU05

Description

Parameters

• Ethernet Standard: 10/100BaseT¹
• Transmission Rate: Up to 100Mbps¹
• Interface: RJ45¹
• Operating Temperature: -20°C to +60°C¹²
• Protection Level: IP65¹

Specifications

• Module Size: 192mm x 112mm x 40mm¹³
• Weight: 1kg¹
• Installation Method: Panel Mount¹

Series

• 560CMU05 Ethernet Port Module Series, including 560CMU05-B (basic model) and 560CMU05-R (extended model with serial communication function)¹

Features

• High Performance: Supports 10/100BaseT Ethernet standard, providing up to 100Mbps transmission rate, meeting the needs of various industrial applications¹.
• Multi-Functionality: Supports multiple Ethernet protocols, including TCP/IP, Modbus TCP, Ethernet/IP, etc., satisfying the connection requirements of various industrial devices¹.
• High Reliability: Ensures stable operation for a long time in harsh working environments using high-quality materials and manufacturing processes³.
• Multiple Digital Input Signals: Supports different types of digital input signals, such as high level (1) or low level (0) representing different states, and other digital signals³.
• High Resolution: Allows precise detection of signal changes¹.
• Multiple Communication Interfaces: Includes serial communication interfaces (RS-232 or RS-485) and Ethernet interfaces for local/remote communication³.
• Supports Multiple Communication Protocols: Such as Modbus, Profibus, etc., ensuring high reliability and stability¹.
• Industrial-Grade Design: Suitable for harsh industrial environments³⁴.
• Rich Interface Options: Facilitates connection to different types of devices³.

Role

• ABB 560CMU05 is a communication device used in industrial automation systems⁴. It enables communication and data exchange between different devices, supporting various communication protocols⁴. It is widely applicable in various industrial automation applications requiring efficient, precise, and reliable control³
