Description
Parameters and specifications:
Total input and output: The number of digital outputs is 2.
Measuring range: 0… 600 bar; 0… 8700 psi; 0… 60 MPa.
System interface: threaded connection G 1/4 internal thread.
Working voltage: 18… 30 DC.
Current loss: < 35 mA.
Output quantity: 2.
Output signal: switch signal; IO-Link (configurable).
Electrical design: PNP/NPN.
Short circuit protection: Yes, the type is pulse.
Overload protection: Yes.
Response time: < 3 ms.
Ambient temperature: -25… 80 °C.
Storage temperature: -40… 100 °C.
Shell protection class: IP 65; IP Address 67.
Size and weight:

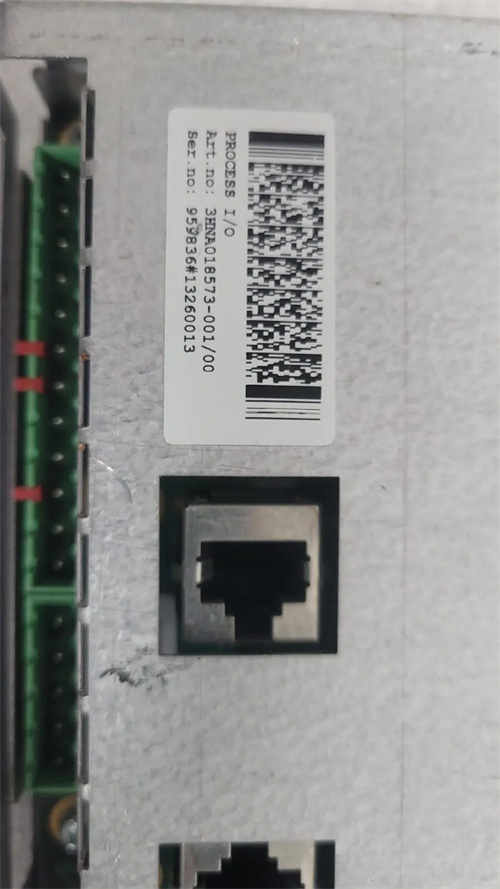

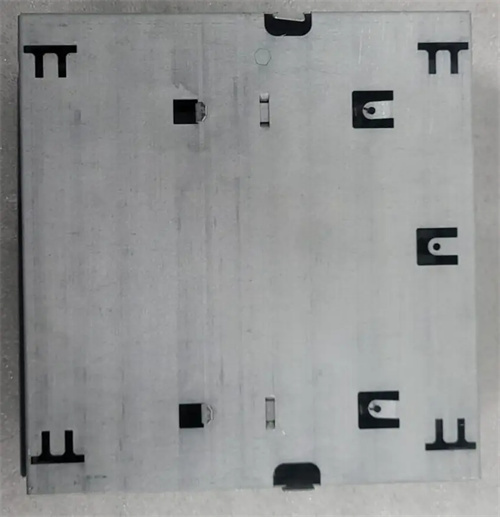

For the sprayed IO board, the dimensions are approximately 214mm(width) x 94.8mm(height) x 237.8mm(depth) and the weight is 5.63kg. However, please note that this may not be the exact size and weight of 3HNA025019-001, as several different products related to ABB are present in the search results.
Series:
3HNA025019-001 is part of the DCS system of ABB Industrial Control System PLC module.
Features:
Rugged design: Suitable for harsh industrial environments.
High load protection: ensures long-term stability.
Pipe connections can be rotated: convenient for optimal alignment.
Red/green display: Used to clearly identify the acceptable range.
Gold plated contact: provides high reliability.
Functions:
The 3HNA025019-001 is a module for industrial applications that measures the pressure of liquid and gaseous media with short circuit protection and overload protection.
